Description

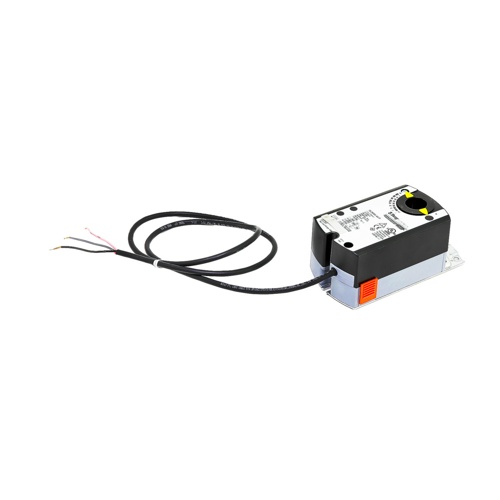

The Bray Commercial DCM24-44-P is a high-performance, direct-coupled modulating actuator engineered for precise damper and valve control in commercial HVAC systems. Delivering reliable, repeatable positioning through a 0-10VDC proportional control signal, this non-spring return (NSR) actuator integrates seamlessly with building automation systems and DDC controllers — making it an ideal solution for demanding air handling applications.
Key Features
- 24V AC/DC supply voltage for broad compatibility with commercial control systems
- 0-10VDC proportional control signal for accurate, modulating damper positioning
- 44 in-lb torque output handles a wide range of damper and valve sizes
- Non-spring return (NSR) operation — holds last position on power loss for added reliability
- Direct-coupled mounting enables fast, tool-free installation on standard damper shafts
- Compatible with both round and square damper shafts
- Compact, robust housing built for commercial HVAC environments
Applications
The DCM24-44-P is purpose-built for air handling units (AHUs), VAV systems, economizers, and other commercial HVAC applications requiring precise modulating damper or valve control. Its 0-10VDC input integrates directly with most building automation systems (BAS) and DDC controllers.
Specifications
- Brand: Bray Commercial
- SKU: DCM24-44-P
- Supply Voltage: 24V AC/DC
- Control Signal: 0-10VDC
- Torque: 44 In-Lbs
- Actuator Type: Non-Spring Return (NSR)
- Mounting: Direct-Coupled
