Description

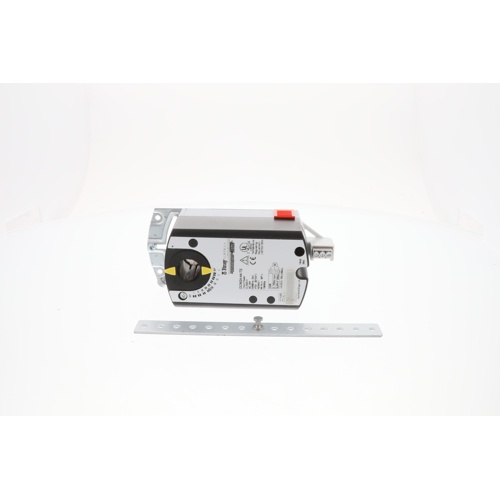

The Bray Commercial DCM24-44-TS is a high-performance, direct-coupled non-spring return (NSR) actuator engineered for precise modulating control in demanding commercial HVAC environments. Accepting a 0–10 VDC control signal and powered by 24V AC/DC, it integrates seamlessly with modern DDC controllers, building automation systems (BAS), and building management systems (BMS).
Key Features
- Supply voltage: 24V AC/DC for broad system compatibility
- Control signal: 0–10 VDC for smooth, proportional modulating control
- Torque output: 44 in-lbs to handle a wide range of damper and valve sizes
- Non-spring return (NSR) design — holds last position on power loss for added safety
- Direct-coupled mounting eliminates crank arms and linkages for faster, cleaner installation
- Compact, robust housing built for reliable commercial HVAC service
- Easy field installation and commissioning
Applications
The DCM24-44-TS is ideally suited for modulating damper and valve control across a wide range of commercial HVAC systems. Typical applications include air handling units (AHUs), variable air volume (VAV) boxes, fan coil units (FCUs), and BAS-integrated building management environments.
Specifications
- Model: DCM24-44-TS
- Brand: Bray Commercial
- Supply Voltage: 24V AC/DC
- Control Signal: 0–10 VDC
- Torque: 44 in-lbs
- Actuator Type: Non-Spring Return (NSR)
- Mounting: Direct-Coupled
