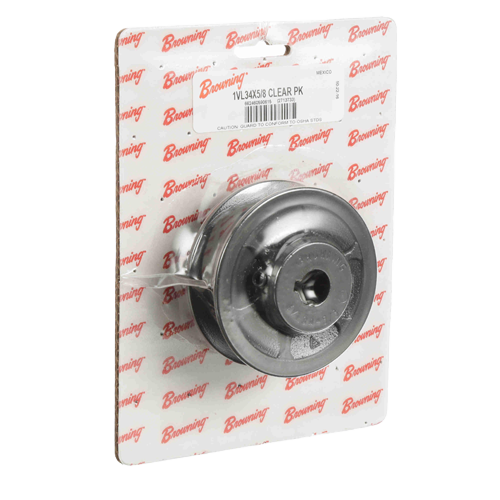

Browning 1VL34X5/8 CLEAR PK 3.15″ Outside Diameter Single Groove VL Cast Iron Sheave

Description

The Browning 1VL34X5/8 CLEAR PK variable pitch V-belt sheave is designed for adjustable speed control in HVAC equipment, fan drives, blowers, and light-duty industrial machinery. This single-groove VL-series sheave allows pitch diameter adjustment to fine-tune belt speed and system performance without changing pulleys. Manufactured from durable cast iron, it provides stable operation and long service life in fractional horsepower applications. With a 5/8-inch finished bore, 3.15-inch outside diameter, and compatibility with multiple belt sections, the Browning 1VL34X5/8 is commonly used for adjustable motor drives up to approximately 5 HP.

Key Features

• Variable pitch VL-series sheave for adjustable drive speed control
• Single groove design compatible with 3L, 4L, 5L, A, and B V-belts
• 5/8 in. finished bore with keyway for secure shaft mounting
• 3.15 in. outside diameter for compact belt drive systems
• Cast iron construction for durability and vibration resistance
• Designed for light-duty drives up to approximately 5 HP
