Description

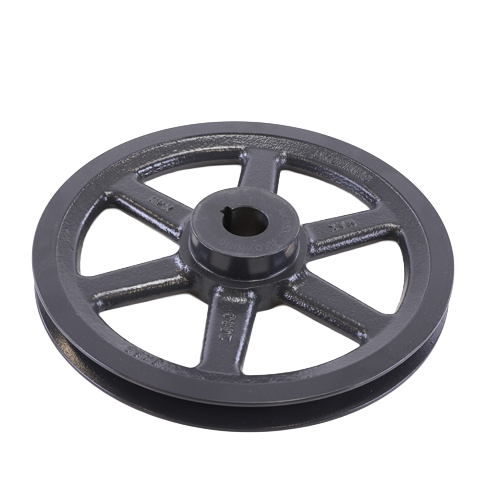

The Browning BK95X1 finished bore V-belt sheave is designed for fractional horsepower and light-to-medium duty belt drive systems commonly found in HVAC equipment, fans, blowers, and industrial machinery. Manufactured from durable cast iron, this single-groove sheave provides reliable belt tracking and power transmission. The combination A/B groove design allows compatibility with A, B, 4L, and 5L V-belts, providing flexibility for a wide range of belt drive configurations. With a 1-inch finished bore, 9.25-inch outside diameter, and precision keyway, the Browning BK95X1 installs directly onto standard shafts for secure and efficient operation.
Key Features
- 1-groove V-belt sheave compatible with A, B, 4L, and 5L belt sections
- 1 in. finished bore with keyway for secure shaft mounting
- 9.25 in. outside diameter for standard FHP belt drive systems
- Cast iron construction for durability and vibration resistance
- Approx. 8.7 in. pitch diameter (A belts) / 9.2 in. pitch diameter (B belts)
- Approx. 6.7 lb weight for stable rotational performance
