Description

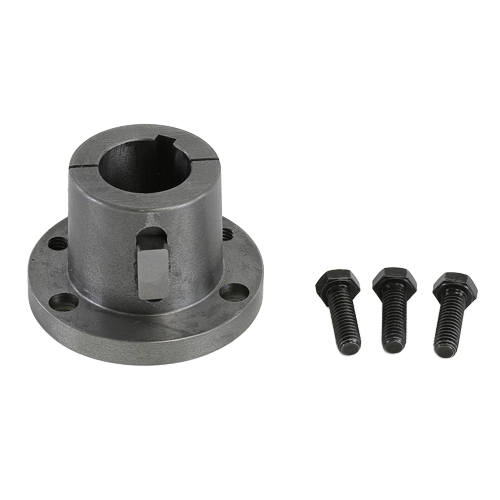

The Browning P1 1 1/8 split taper bushing is a precision-machined shaft mounting component designed to secure sheaves, sprockets, and pulleys to a 1-1/8 inch diameter shaft. This P1 series bushing features Browning’s split taper design, which uses a tapered barrel and clamping screws to create a tight mechanical lock between the shaft and driven component. Constructed from sintered steel or ductile iron, it provides strong torque transmission and reliable concentricity in HVAC fan drives, pumps, conveyors, and other industrial belt drive systems.
Key Features
- Bushing Series: P1 split taper bushing
- Bore Size: 1-1/8 inch finished bore
- Keyway Size: 1/4" × 1/8" shaft keyway
- Flange Diameter: 3.0 inches
- Length Through Bore: 1.9375 inches (approx. 1-15/16")
- Bolt Circle Diameter: 2-7/16 inches with 3 cap screws
