Description

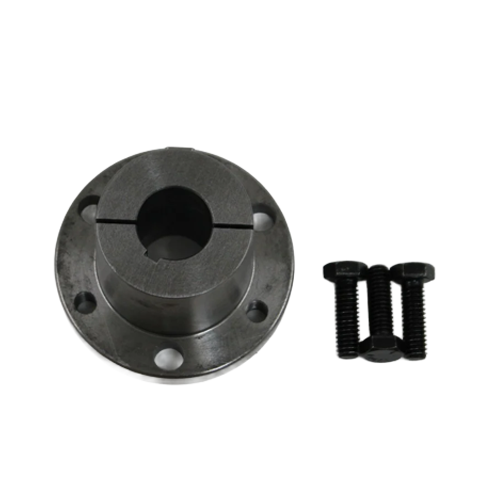

The Browning P1 7/8 is a P1-series split taper bushing designed to securely mount sheaves, pulleys, and sprockets onto a 7/8-inch shaft in belt-driven power transmission systems. Manufactured from durable steel, this bushing uses Browning’s split taper design with a 3/4"-per-foot taper to create a strong mechanical lock between the shaft and mounted component. The double-split barrel improves concentricity and holding power, while the keyed bore ensures positive torque transmission. The Browning P1 7/8 is commonly used in HVAC drives, pumps, fans, and other industrial machinery requiring reliable shaft-to-hub connections.
Key Features
- Bushing Series: Browning P1 split taper bushing
- Bore Size: 7/8 inch finished bore
- Overall Length: 1-15/16 inches
- Bolt Circle Diameter: 2-7/16 inches
- Keyway Size: 3/16" width × 3/32" depth
- Material: Steel construction with split taper barrel for secure shaft mounting
