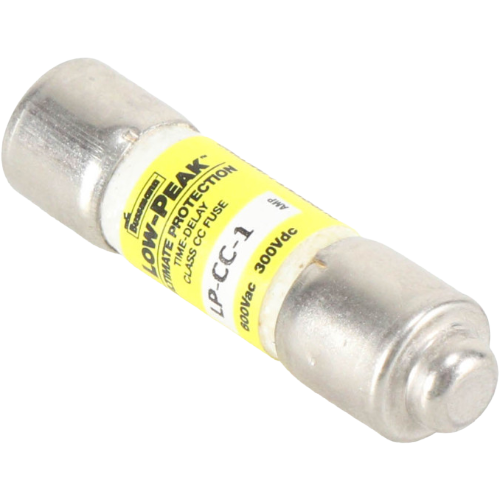

Bussmann LP-CC-1 Class CC Midget Time Delay Fuse 1A

Description

The Bussmann LP-CC-1 is a 1-Amp Class CC midget time delay fuse engineered for dependable overcurrent protection in HVAC control circuits, motor branch circuits, and industrial control panels. Designed to the exacting standards of the Class CC fuse specification, this fuse features a rejection-style ferrule that prevents accidental substitution with lower-rated fuse classes, enhancing system safety and code compliance.

Key Features

• 1 Amp (1A) current rating for precise low-amperage circuit protection
• 600V AC/DC voltage rating suitable for a wide range of HVAC and control applications
• Time delay (dual-element) design tolerates harmless motor inrush and transformer inrush currents while responding quickly to sustained overloads and short circuits
• Class CC rejection ferrule prevents replacement with lower-interrupting-capacity fuses
• Compact midget form factor (13/32″ x 1-1/2″) fits standard midget fuse holders and blocks
• High interrupting rating for robust short-circuit protection
• UL Listed and CSA Certified for North American installations

Typical Applications

• HVAC control circuit protection
• Motor branch circuit and control panel protection
• Industrial control equipment and power distribution panels
• Transformer primary protection
• Low-amperage branch circuit protection where Class CC fusing is specified

Product Specifications

• Brand: Bussmann (Eaton)
• SKU / Part Number: LP-CC-1
• Ampere Rating: 1A
• Fuse Class: CC
• Fuse Type: Time Delay (Dual Element)
• Form Factor: Midget
• Voltage Rating: 600V AC/DC
• Certifications: UL Listed, CSA Certified

Trust Bussmann’s LP-CC-1 to deliver the reliable, code-compliant protection your HVAC and control systems demand. Order from Jackson Systems for fast shipping and expert support.
