Description

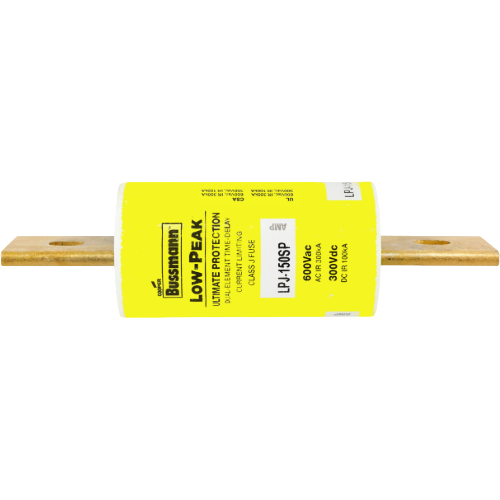

The Bussmann LPJ-150SP is a 150-amp, 600VAC Class J Low-Peak time-delay fuse engineered to provide superior overcurrent and short-circuit protection in demanding HVAC and commercial electrical applications. As part of Bussmann’s industry-trusted Low-Peak series, the LPJ-150SP combines dual-element, time-delay performance with the compact footprint of a Class J fuse, making it a reliable choice for motor branch circuits, control panels, and equipment protection.
Key Features
- 150-amp continuous current rating
- 600VAC maximum voltage rating
- Class J fuse classification for high interrupting capacity
- Dual-element, time-delay design accommodates motor inrush currents while protecting against sustained overloads
- Low-Peak technology helps reduce energy let-through during fault conditions
- Compact Class J form factor for use in Class J fuse holders and fuse blocks
- Suitable for motor circuit, feeder, and branch circuit protection
Specifications
- SKU: LPJ-150SP
- Brand: Bussmann
- Amperage: 150A
- Voltage Rating: 600VAC
- Fuse Class: Class J
- Type: Dual-Element, Time-Delay (Low-Peak)
Applications
- HVAC equipment and motor branch circuit protection
- Commercial and industrial electrical panels
- Feeder and branch circuit overcurrent protection
- Control panels requiring Class J fuse protection
