Description

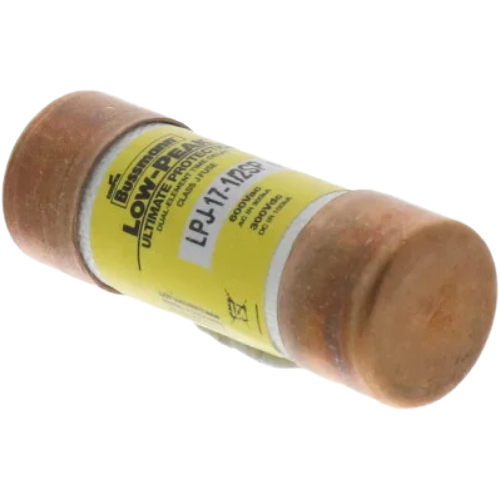

The Bussmann LPJ-17-1/2SP is a Low Peak dual-element, time-delay Class J fuse rated at 17.5 amps and 600 volts. Engineered for demanding HVAC and industrial electrical applications, this fuse provides reliable overcurrent and short-circuit protection while offering the time-delay characteristics needed to ride through harmless motor inrush currents without nuisance tripping.
Key Features
- 17.5-amp (17-1/2A) current rating for precise circuit protection
- 600V voltage rating suitable for single- and three-phase systems
- Dual-element, time-delay design tolerates motor starting surges without nuisance blowing
- Class J form factor — non-interchangeable with lower-rated fuse classes for added safety
- Low Peak design allows for smaller fuse sizing, reducing energy let-through and improving equipment protection
- Compact, current-limiting construction helps protect downstream components from damaging fault currents
Specifications
- SKU: LPJ-17-1/2SP
- Brand: Bussmann
- Amperage: 17.5A (17-1/2A)
- Voltage Rating: 600V
- Fuse Class: Class J
- Type: Dual-Element, Time Delay
- Series: Low Peak (LPJ)
Typical Applications
- HVAC equipment branch circuit and feeder protection
- Motor branch circuit protection for compressors, fans, and blowers
- Industrial control panels and electrical distribution systems
- Commercial and light industrial power circuits requiring Class J fusing
