Description

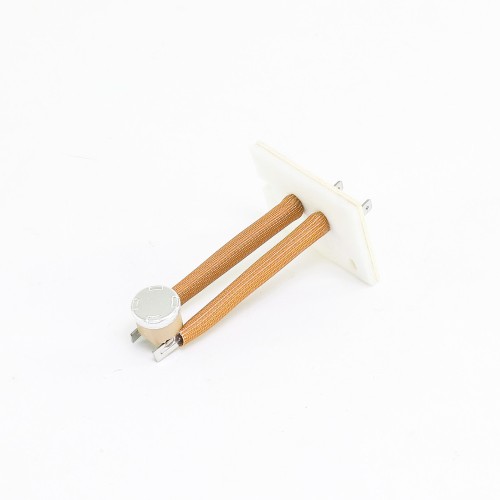

The Carrier HH12ZZ165 is an OEM replacement limit switch engineered to protect your furnace from overheating and unsafe operating conditions. Designed as a direct-fit replacement for compatible Carrier heating systems, this limit switch monitors heat exchanger temperatures and automatically interrupts burner operation when temperatures exceed safe thresholds — then resets automatically once conditions return to normal.
How It Works
The limit switch continuously monitors the temperature inside the furnace plenum or heat exchanger area. When the sensed temperature reaches the 165°F set point, the switch opens to cut power to the burner, preventing equipment damage and potential safety hazards. Once the temperature drops by 40°F (the differential), the switch automatically resets and restores normal operation.
Key Specifications
- OEM Part Number: HH12ZZ165
- Brand: Carrier
- Set Point: 165°F
- Differential: 40°F (resets at approximately 125°F)
- Type: Automatic reset high-limit switch
- Application: Furnace overheat protection
Features & Benefits
- Direct OEM replacement for compatible Carrier furnace models
- Automatic reset operation for convenient, reliable performance
- Precise 165°F trip point helps prevent heat exchanger damage and fire hazards
- 40° differential ensures stable cycling without nuisance tripping
- Protects both equipment and occupants from overheating conditions
- Maintains system efficiency by shutting down the burner only when necessary
Application
This limit switch is a critical safety component in gas and electric furnaces. It is typically installed on or near the heat exchanger and is designed to work within Carrier residential and light commercial heating systems. Always verify compatibility with your specific furnace model before installation.
