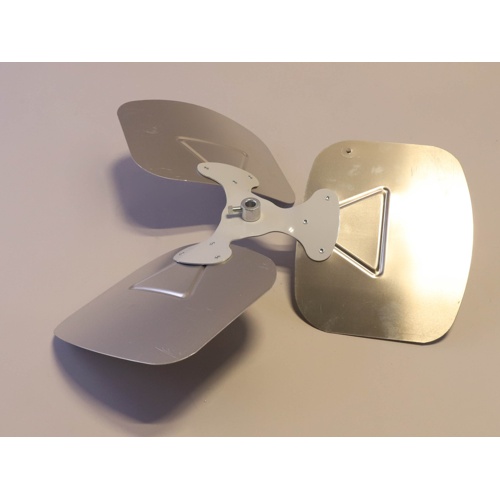

Carrier LA01EA025 Condenser Fan Blade 3-Blade 22″ Dia 28° CW 1/2″ Bore

Description

Carrier LA01EA025 Condenser Fan Blade Overview

The Carrier LA01EA025 is an OEM replacement condenser fan blade engineered for reliable, efficient airflow in Carrier condensing units. Designed as a direct drop-in replacement, this fan blade maintains the precise aerodynamic performance your system requires to operate at peak efficiency.

Key Specifications

• Number of Blades: 3
• Blade Diameter: 22 inches
• Blade Pitch: 28 degrees
• Rotation Direction: Clockwise (CW) when viewed from the air discharge side
• Bore Size: 1/2 inch
• Brand: Carrier
• Part Number: LA01EA025

Product Features

• OEM Carrier replacement part for precise fit and performance
• 28-degree blade pitch optimized for maximum airflow efficiency
• Clockwise rotation designed to match original equipment specifications
• 1/2″ bore for secure, vibration-free motor shaft mounting
• 22″ diameter delivers high-volume condenser airflow
• Durable construction for long-lasting outdoor condenser service

Application

This fan blade is intended for use in Carrier residential and light commercial condensing units requiring a 3-blade, 22″ diameter replacement. Always verify the part number and rotation direction against your existing equipment before installation to ensure compatibility.
