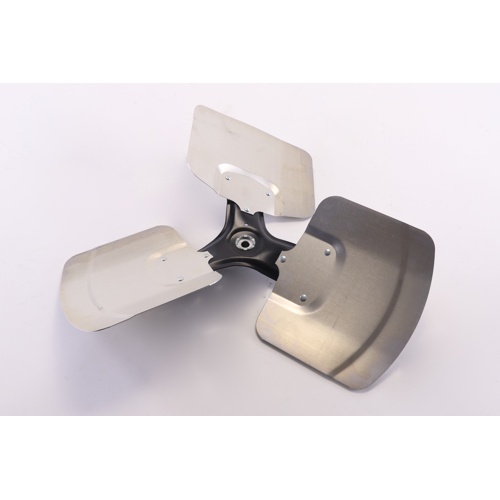

Carrier LA01EA121 22″ Dia, 28° Pitch, 3-Blade, CW, 1/2″ Bore Fan Blade

Description

Carrier LA01EA121 Fan Blade Overview

The Carrier LA01EA121 is an OEM replacement fan blade engineered for reliable condenser airflow performance in Carrier HVAC equipment. Featuring a 22-inch diameter sweep, a 28-degree blade pitch, and a three-blade design, this fan blade delivers consistent and efficient air movement to keep your condensing unit operating at peak capacity. The clockwise (CW) rotation and 1/2-inch bore on the intake side ensure a precise, drop-in fit for compatible Carrier systems, minimizing downtime and simplifying installation.

Key Specifications

• SKU: LA01EA121
• Blade Diameter: 22 inches
• Blade Pitch: 28 degrees
• Number of Blades: 3
• Rotation Direction: Clockwise (CW)
• Bore Size: 1/2 inch
• Bore Location: Intake Side
• Brand: Carrier

Features & Benefits

• OEM Carrier replacement part for assured compatibility and fit
• 22″ diameter provides broad airflow coverage across the condenser coil
• 28-degree pitch optimized for efficient air delivery and reduced motor load
• 3-blade configuration balances airflow volume with quiet operation
• Clockwise rotation matches factory specifications for proper condenser performance
• 1/2″ bore on intake side for secure shaft mounting and minimal vibration
• Durable construction designed to withstand outdoor operating conditions

Application

The LA01EA121 fan blade is designed as a direct OEM replacement for Carrier condensing units and rooftop equipment requiring a 22-inch, 3-blade, clockwise-rotation fan assembly. Always verify compatibility with your specific Carrier unit model before installation. Consult your equipment documentation or a qualified HVAC technician for proper installation guidance.
