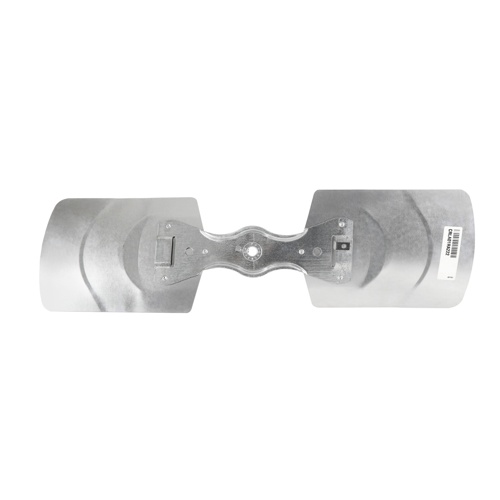

Carrier LA01RA222 24″ Dia., 16° Pitch, 2-Blade, CW, 1/2″ Bore Fan Blade

Description

The Carrier LA01RA222 is an OEM replacement fan blade engineered for reliable condenser and air-handling performance in Carrier HVAC systems. With a 24-inch diameter and a 16-degree blade pitch, this two-blade assembly delivers optimized airflow and efficient heat rejection at the condenser section. The clockwise (CW) rotation and 1/2-inch bore ensure a direct, secure fit to compatible motor shafts, minimizing installation time and eliminating the guesswork of aftermarket alternatives.

Key Specifications

• Blade Diameter: 24 inches
• Blade Pitch: 16 degrees
• Number of Blades: 2
• Rotation Direction: Clockwise (CW)
• Bore Size: 1/2 inch
• Brand: Carrier
• Part Number: LA01RA222

Product Highlights

• OEM replacement blade for Carrier HVAC equipment
• 16-degree pitch optimizes airflow volume and static pressure balance
• Two-blade design reduces motor load while maintaining efficient air movement
• Clockwise rotation matches original equipment specifications for proper airflow direction
• 1/2″ bore provides a secure, vibration-resistant fit on standard motor shafts
• Durable construction designed to withstand outdoor condenser operating environments

Application

The LA01RA222 fan blade is designed as a direct OEM replacement for select Carrier condensing units and air-cooled HVAC systems. Always verify the part number against your equipment’s service manual or nameplate data before ordering to ensure proper fit and performance.
