Description

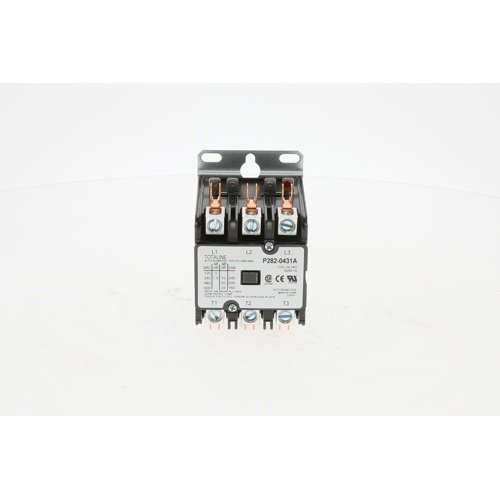

The Carrier P282-0431A is a genuine OEM definite purpose contactor engineered for reliable switching performance in commercial and residential HVAC applications. Designed to handle the demanding electrical loads found in air conditioning, heat pump, and refrigeration equipment, this contactor delivers consistent, long-service-life operation right out of the box.
Key Features
- Genuine Carrier OEM replacement contactor for assured fit and compatibility
- 24Vac coil voltage rated for both 50 Hz and 60 Hz systems — suitable for domestic and international equipment
- 3-pole configuration provides three separate switching contacts for multi-phase or multi-load circuit control
- 40-amp load rating handles the high-current demands of compressors, condenser fan motors, and other HVAC loads
- Definite purpose design optimized specifically for HVAC/R switching duty cycles
- Lug terminal connections allow for secure, low-resistance wire termination and simplified field installation
- Robust construction resists the vibration, heat, and electrical stress common in HVAC operating environments
Specifications
- SKU: P282-0431A
- Brand: Carrier
- Type: Definite Purpose Contactor
- Coil Voltage: 24Vac
- Frequency: 50/60 Hz
- Poles: 3
- Amperage: 40 Amps
- Terminal Type: Lug Terminals
Application
This contactor is the correct OEM replacement for Carrier systems specifying part number P282-0431A. Its definite purpose rating makes it ideal for the repetitive on/off switching cycles of HVAC compressors and motor loads, ensuring dependable performance over the life of the equipment. The 24Vac coil integrates seamlessly with standard low-voltage control circuits found in most residential and light commercial HVAC systems.
