Description

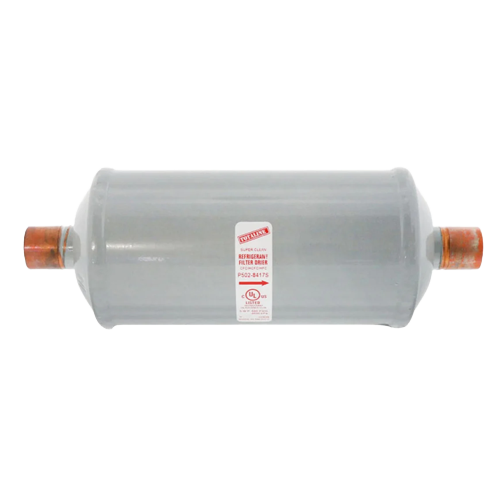

The Carrier Totaline P502-8417S is a Liquid Line Uni-Flo Filter Drier engineered to protect refrigeration and air conditioning systems from moisture, acid, and contaminants. Designed for use with multiple refrigerants and featuring copper-to-copper connections, this drier delivers dependable performance in a compact, field-ready package.
Key Features
- Liquid Line Uni-Flo design for efficient, single-direction flow filtration
- 7/8″ ODF inlet and outlet connections (C x C) for easy installation
- 41 cubic inch capacity for effective moisture and acid removal
- Compatible with R-134a, R-404A, and R-507A refrigerants
- CSA Listed, UL Listed, and UL Recognized for safety and compliance
- Prop 65 compliant — No hazardous material concerns
Specifications
- Line Drier Type: Liquid Line Uni-Flo
- Inlet Connection Size: 7/8″
- Outlet Connection Size: 7/8″
- Connection Type: C x C (Copper x Copper)
- Cubic Inch Size: 41
- Refrigerants: R-134a, R-404A, R-507A
- Approvals: CSA Listed, UL Listed, UL Recognized
- Country of Origin: Mexico
- UPC: 662441165795
Dimensions & Weight
- Length: 3.6 inches
- Width: 10.5 inches
- Height: 3.2 inches
- Weight: 2.4 lbs
