Description

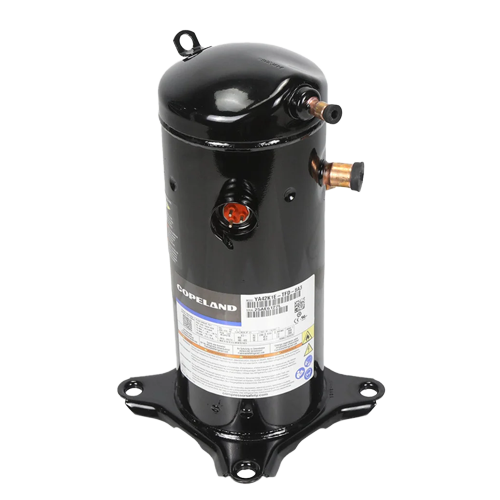

The Carrier Copeland YA42K1E-TFD-8A3 is a commercial-grade scroll compressor engineered for dependable, high-efficiency performance in demanding HVAC applications. Built in the USA with a semi-hermetic scroll design, this three-phase unit operates on R-454B refrigerant and features internal inherent protection for long-term reliability. Polyolester (POE) oil lubrication and a robust operating envelope make it an ideal replacement or OEM choice for commercial cooling systems.
Electrical Specifications
- Voltage: 380 / 420 / 460 VAC
- Phase: Three-Phase
- Cycle/Hertz: 50/60 Hz
- Amps (Operating): 3.9 – 5.6 A
- Rated Load Amps (RLA): 5.8 – 6.7 A
- Locked Rotor Amps (LRA): 49 – 49.4 A
Performance Specifications
- Refrigerant: R-454B
- Displacement: 2.56 in³/Rev
- Mass Flow: 407 – 527 lbs/hr
- Condensing Temperature: 100°F to 130°F (37.78°C to 54.44°C)
- Evaporating Temperature: 45°F (7.22°C) / 50°F (10°C)
- Return Gas Temperature: 65°F (18.33°C) / 70°F (21.11°C)
- Liquid Temperature: 85°F / 115°F
- Sound Level: 68 – 76 dBA
Compressor Details
- Brand: Copeland
- Compressor Type: Scroll
- Compressor Housing: Semi-Hermetic
- Protection: Internal Inherent Protection
- Oil Type: Polyolester (POE)
- Oil Charge (Initial): 42 oz.
- Country of Origin: USA
Connections
- Discharge Connection Size (OD): 1/2″
- Discharge Connection Type: Stub
- Suction Line Size (OD): 7/8″
- Suction Line Fitting Type: Stub
Dimensions & Weight
- Length: 14.5 in
- Width: 13 in
- Height: 20 in
- Mounting Dimensions: 7.5″ x 7.5″ x 17.2″
- Weight: 85 lbs
