Description

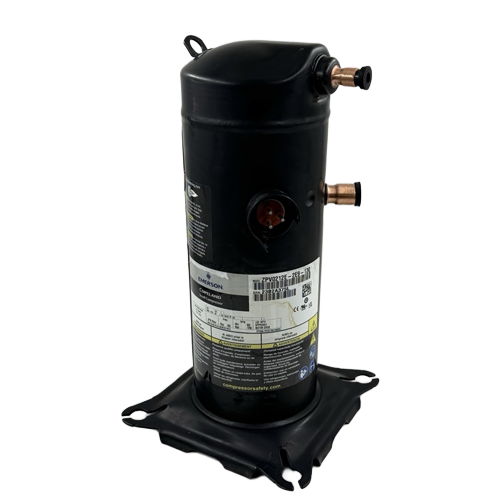

The Carrier ZPV0212E-2E9-830 is a Copeland Scroll variable speed compressor engineered to deliver maximum cooling and heating efficiency for residential and light commercial air conditioning applications. With a broad capacity range of 11,850 to 36,700 BTU and a 27.85 EER rating, this compressor offers outstanding energy performance across a wide range of operating conditions. Variable speed modulation and external enhanced protection make it a reliable, high-efficiency choice for modern HVAC systems.
Features & Benefits
- High-flow, automatically reversible oil pump provides positive-displacement lubrication for consistent protection across all operating speeds
- Crankcase venting system equalizes pressure during startup and ensures reliable oil return to the sump
- Oversize sump retains extra oil in the crankcase, preventing levels from dropping below safe lubrication range during flooded starts
- Contoured pistons reduce cylinder clearances to maximize compressor capacity and efficiency
- High-efficiency valves increase refrigerant flow and minimize pressure drops for optimized system performance
- Electronic oil-pressure switch provides advanced compressor protection
- Variable speed modulation enables precise capacity control and energy savings
- Polyol ester oil formulation optimized for high-temperature and ultra-high-pressure operation
Specifications
- SKU: ZPV0212E-2E9-830
- Type: Scroll Compressor, Reversed Center Cylinder Head
- Refrigerant: R-410A
- Capacity Range: 11,850 – 36,700 BTU
- Horsepower: 1 – 6 HP
- Voltage: 220/240V AC, 3-Phase
- Frequency: 20/38/75 Hz
- EER Rating: 27.85
- Modulation: Variable Speed
- Protection: External Enhanced Protection
- Lubrication Oil: Polyol Ester (POE)
- Application: High Temperature & Ultra High Pressure Air Conditioning
- Dimensions: 33″L x 24″W x 20″H
- Certifications: UL, CSA, CE, NEC, ISO 9002
