Description

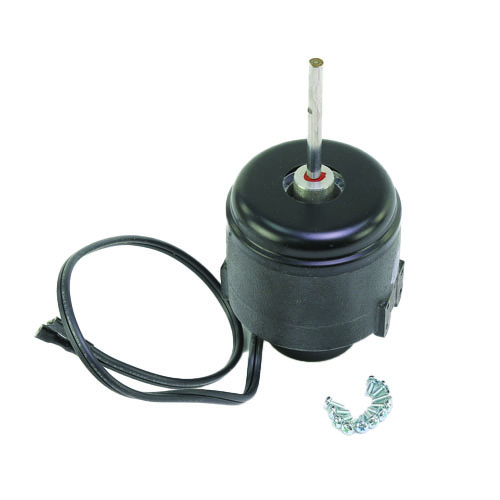

The Century 291 is a heavy-duty unit bearing shaded pole motor engineered for dependable performance in a wide range of HVAC and commercial fan applications. With a totally enclosed air-over (TEAO) design, this motor is built to withstand demanding operating environments where airflow passes directly over the motor for cooling.
Electrical Specifications
- Voltage: 115VAC
- Phase: Single Phase
- Amperage: 1.7 Amps
- Power Output: 50 Watts
- Motor Type: Shaded Pole
Mechanical Specifications
- Speed: 1500 RPM
- Number of Speeds: 1
- Shaft Diameter: 5/16″
- Rotation: Clockwise (CW), Lead End
- Mounting: Rear / Double Foot
- Bearing Type: Unit Bearing
Enclosure & Construction
- Enclosure: Totally Enclosed Air Over (TEAO)
- Designed for long service life with minimal maintenance requirements
- Unit bearing construction reduces friction and noise for quiet operation
Key Benefits
- Reliable single-phase operation ideal for OEM and replacement applications
- Rear/double foot mounting provides versatile installation options
- Shaded pole design delivers simple, brushless operation with no starting capacitor required
- Totally enclosed housing protects internal components from dust and debris
- Compact, efficient design suited for evaporator fans, unit heaters, and similar HVAC equipment
