Description

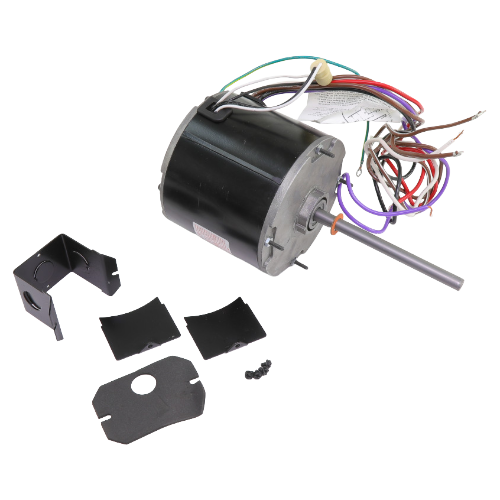

The Century 782A is a heavy-duty permanent split capacitor (PSC) condenser fan motor engineered for reliable performance in commercial and residential HVAC condensing units. Built to handle demanding outdoor environments, this motor features a semi-enclosed air-over enclosure and precision ball bearings for long service life with minimal maintenance.
Electrical Specifications
- Voltage: 460V AC
- Phase: Single Phase
- Horsepower: 1/4 HP
- Speed: 2-Speed — 1625 RPM
- Amperage: 0.74 / 0.58 Amps
- Motor Type: Permanent Split Capacitor (PSC)
Mechanical Specifications
- Frame Size: F48Y
- Enclosure: Semi Enclosed Air Over
- Bearing Type: Ball Bearing
- Shaft Diameter: 1/2″
- Rotation: Reversible
- Mounting: Extended Studs
Key Features
- 2-speed operation for flexible airflow control
- Reversible rotation for versatile installation configurations
- Ball bearing construction for extended motor life and reduced friction
- Semi-enclosed air-over design suited for condenser fan applications
- Extended stud mounting for secure, stable installation
- F48Y frame for direct cross-reference compatibility with OEM applications
- PSC design delivers efficient, quiet operation
Applications
The Century 782A condenser fan motor is ideal for use in air conditioning condensing units, heat pumps, and commercial refrigeration equipment requiring a 460V single-phase, 2-speed motor in the F48Y frame size. Its reversible rotation and extended stud mounting make it a versatile drop-in replacement for a wide range of OEM applications.
