Description

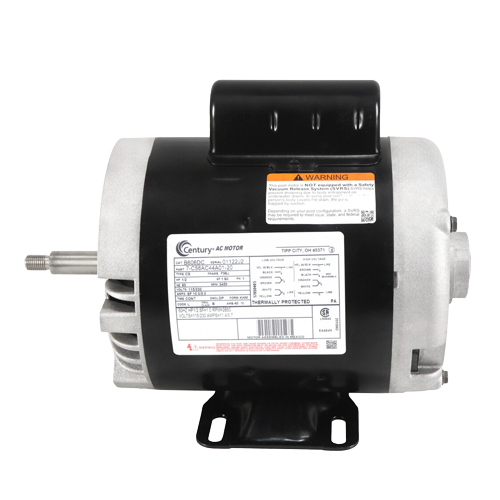

The Century B606DC is a heavy-duty, single-phase capacitor start motor engineered for demanding HVAC and industrial pump applications. Built around a 56J rigid base frame, this motor delivers reliable performance where durability and corrosion resistance are essential.
Key Specifications
- Horsepower: 1/2 HP
- Speed: 3450 RPM
- Voltage: 115/230V
- Phase: Single Phase
- Frame: 56J
- Enclosure: ODP (Open Drip Proof)
- Rotation: Clockwise (CW)
- Motor Type: Capacitor Start
- Shaft Type: Threaded Shaft
- Shaft Material: 303 Stainless Steel
- Bearings: Ball Bearing
- Base: Rigid Base
Features & Benefits
- 303 stainless steel threaded shaft resists corrosion in wet or harsh environments — ideal for pump applications
- Capacitor start design delivers high starting torque for demanding loads
- Ball bearing construction ensures long service life and reduced maintenance
- Dual-voltage 115/230V wiring provides installation flexibility
- 56J rigid base frame allows direct mounting to pump flanges and equipment bases
- ODP enclosure promotes airflow for efficient motor cooling in protected indoor environments
- 3450 RPM synchronous speed suits high-speed pump and compressor applications
Application
The B606DC is well suited for use in water pumps, sump pumps, jet pumps, and other HVAC or light industrial equipment requiring a corrosion-resistant, high-starting-torque motor. The 56J frame ensures compatibility with a wide range of standard pump flanges.
