Description
Overview

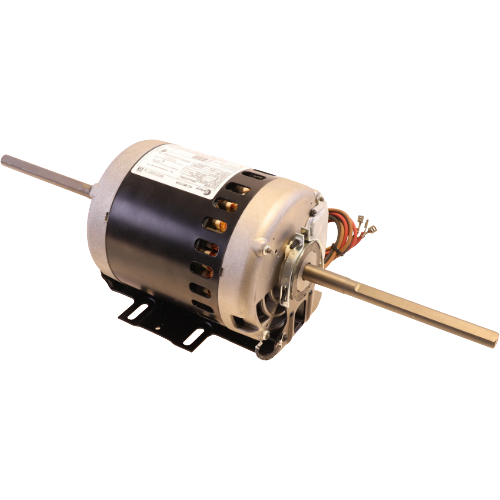

The Century C024 is a high-quality 3/4 HP condenser fan motor engineered for dependable performance in residential and light commercial HVAC applications. Designed as a direct OEM-style replacement, this motor delivers consistent airflow and efficient operation in a wide range of condensing units and air-cooled equipment.
Electrical Specifications
- Horsepower: 3/4 HP
- Voltage: 208–230V AC
- Amperage: 6.0 Amps
- Speed: 1075 RPM
- Number of Speeds: 1
Mechanical Specifications
- Rotation: CCWLE (Counter-Clockwise, Lead End)
- Shaft Dimensions: 7-1/2″ x 5/8″ x 7-1/2″
- Motor Diameter: 6-1/2″
Key Features
- Single-speed operation for straightforward installation and reliable control
- CCWLE rotation for proper condenser fan blade compatibility
- Robust construction designed to withstand outdoor operating environments
- Compact 6-1/2″ motor diameter fits standard condenser unit housings
- Long shaft design accommodates a variety of fan blade configurations
- Built to Century’s proven quality standards for HVAC motor reliability
Application
The Century C024 is ideal for use as a replacement condenser fan motor in residential and commercial split-system air conditioners, heat pumps, and packaged rooftop units. Its 208–230V rating makes it compatible with standard single-phase power supplies found in most North American HVAC installations.
