Description

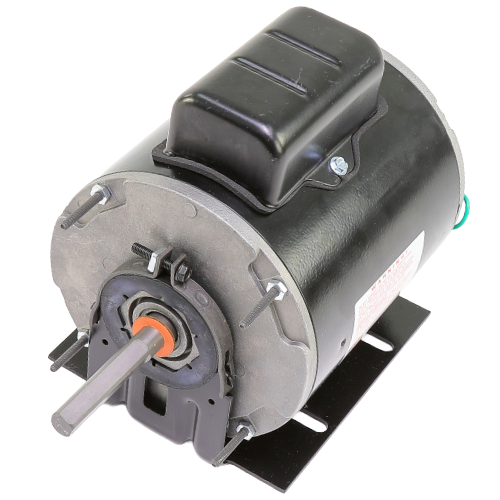

The Century C046A is a heavy-duty Permanent Split Capacitor (PSC) motor engineered for reliable performance in demanding HVAC and air-handling applications. Built around a 48Z NEMA frame with a totally enclosed, air-over (TEAO) design, this motor is well-suited for use in evaporator fan, condenser fan, and other air-movement applications where the motor is cooled by the airstream it drives.
Electrical Specifications
- Voltage: 115/230 VAC
- Phase: Single Phase
- Amperage: 4.5 A (115V) / 2.3 A (230V)
- Motor Type: Permanent Split Capacitor (PSC)
- Speed: 1 Speed — 1100 RPM
Mechanical Specifications
- Horsepower: 1/3 HP
- NEMA Frame: 48Z
- Enclosure: Totally Enclosed Air Over (TEAO)
- Bearing Type: Ball Bearing
- Mounting: Resilient Base
- Shaft Size: 1/2″ diameter x 3-1/4″ length
- Rotation: Reversible
Key Features & Benefits
- Dual-voltage (115/230V) design offers flexible installation across a wide range of equipment
- Ball bearing construction provides long service life and reduced maintenance
- Totally Enclosed Air Over (TEAO) enclosure protects internal components from dust and debris in air-stream environments
- Reversible rotation allows for versatile field configuration without additional parts
- Resilient base mount minimizes vibration transmission to the equipment frame
- 48Z NEMA frame ensures broad cross-reference compatibility with OEM and aftermarket applications
- PSC motor design delivers smooth, efficient operation with low starting current
Typical Applications
- Evaporator fan motors in refrigeration and HVAC equipment
- Condenser fan and air-handling unit replacement motors
- Commercial and residential HVAC air-movement systems
- OEM and aftermarket motor replacement in 48Z frame equipment
