Description

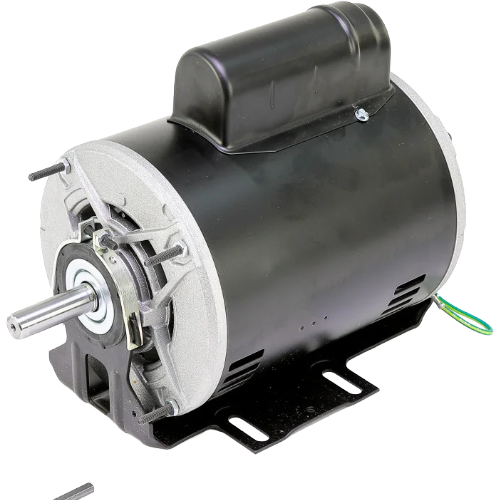

The Century C412V2 is a heavy-duty, single-phase general purpose motor engineered for reliable continuous-duty performance in demanding HVAC and industrial applications. Built on the industry-standard 56 frame with a cushion base, this motor offers flexible installation in a wide range of equipment configurations.
Electrical Specifications
- Voltage: 115/208-230V AC
- Amperage: 8.2 A (115V) / 4.0–4.1 A (208-230V)
- Phase: Single Phase
Mechanical Specifications
- Horsepower: 1/2 HP
- Speed: 1725 RPM
- Frame: 56
- Shaft: 5/8″ Keyed Shaft
- Bearing Type: Ball Bearing
- Mounting: Cushion Base
- Rotation: RCC (Reversible Counter-Clockwise)
- Motor Type: SCS
Performance & Duty Ratings
- Service Factor: 1.25
- Duty: Continuous
- Enclosure: ODP (Open Drip-Proof)
Key Features & Benefits
- Dual-voltage design (115/208-230V) provides installation versatility across a wide range of power supply configurations
- 1.25 service factor allows the motor to handle occasional overloads without damage or premature failure
- Ball bearing construction delivers smooth, low-friction operation and extended service life
- ODP enclosure protects internal components from dripping liquids while allowing airflow for efficient cooling
- 5/8″ keyed shaft ensures secure, positive power transmission to driven loads
- 56 frame with cushion base simplifies direct replacement and new installations in standard motor mounts
- Rated for continuous duty — ideal for fans, blowers, pumps, and other HVAC equipment requiring sustained operation
