Description

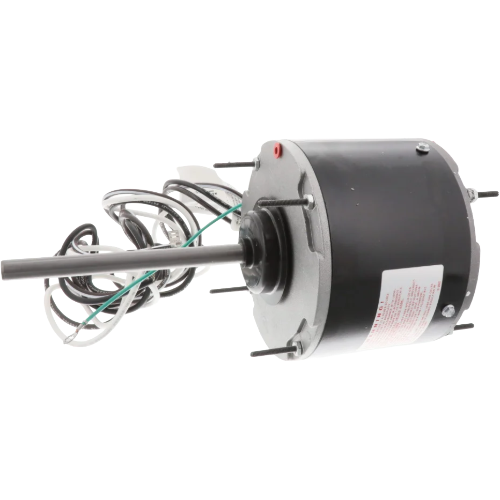

The Century FE1008SF is a reliable Permanent Split Capacitor (PSC) motor engineered for demanding HVAC and commercial equipment applications. Built around a 48 NEMA frame, this single-phase motor delivers consistent, low-speed performance at 825 RPM while drawing only 1.0 amp — making it an energy-conscious choice for fan and blower duty.
Motor Overview
The FE1008SF features an enclosed construction that shields internal components from dust, moisture, and airborne contaminants, extending service life in challenging installation environments. Precision ball bearings ensure smooth, quiet operation and long-term durability with minimal maintenance requirements.
Key Specifications
- Horsepower: 1/8 HP
- Voltage: 208–230 VAC
- Phase: Single Phase
- Speed: 825 RPM
- Number of Speeds: 1
- Full Load Amps: 1.0 A
- Frame Size: 48 NEMA
- Enclosure Type: Enclosed
- Bearing Type: Ball Bearing
- Shaft Dimensions: 1/2″ diameter x 6-1/2″ length
- Rotation: Reversible
- Motor Type: Permanent Split Capacitor (PSC)
Features & Benefits
- Reversible rotation for flexible installation and airflow direction control
- Enclosed housing protects against dust, debris, and moisture ingress
- Ball bearing construction for long service life and quiet, smooth operation
- Low 1.0-amp draw supports energy-efficient system operation
- Standard 48 NEMA frame for straightforward drop-in replacement
- Long 6-1/2″ shaft accommodates a variety of fan blade and blower wheel configurations
- PSC design delivers reliable starting and running performance without external start components
Typical Applications
- HVAC fan and blower assemblies
- Evaporative coolers
- Refrigeration equipment
- Commercial ventilation systems
- OEM equipment replacement
