Description

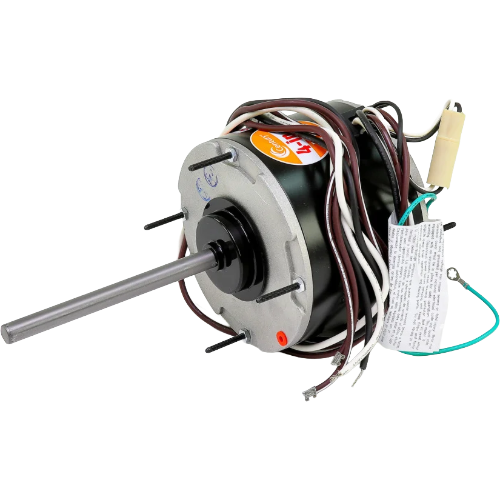

The Century ORM5458BF is a heavy-duty condenser fan motor engineered for reliable performance in demanding HVAC applications. Featuring a totally enclosed design, this motor is built to withstand harsh outdoor environments while protecting internal components from dust, moisture, and debris.
Motor Performance Specifications
- Horsepower: 1/3 HP – 1/6 HP (dual-rated)
- Speed: 1075 RPM, 1 Speed
- Voltage: 208–230V AC
- Amperage: 2.0 Amps
- Frame: 48Y
- Motor Diameter: 5-5/8″
Construction & Design Features
- Ball bearing construction for long service life and reduced friction
- Totally enclosed motor body for superior environmental protection
- All-angle mounting for flexible installation in virtually any orientation
- Reversible rotation to accommodate a wide range of equipment configurations
- Removable drain plugs to prevent moisture accumulation inside the motor housing
Application & Compatibility
The ORM5458BF is designed as a direct replacement condenser fan motor for residential and light commercial air conditioning and heat pump systems. The 48Y frame ensures broad OEM compatibility, while the dual horsepower rating (1/3 HP and 1/6 HP) adds versatility across multiple equipment models. All-angle mounting and reversible rotation make this motor a go-to solution for HVAC technicians performing service and replacement work.
Why Choose the Century ORM5458BF?
- Dual HP rating (1/3–1/6 HP) maximizes cross-application compatibility
- Ball bearings deliver quieter, longer-lasting operation vs. sleeve bearing alternatives
- Totally enclosed housing protects against outdoor elements
- Removable drain plugs prevent moisture-related failures
- All-angle mounting simplifies installation in tight or unconventional equipment configurations
- Reversible rotation eliminates the need for multiple motor SKUs on the service truck
