Description

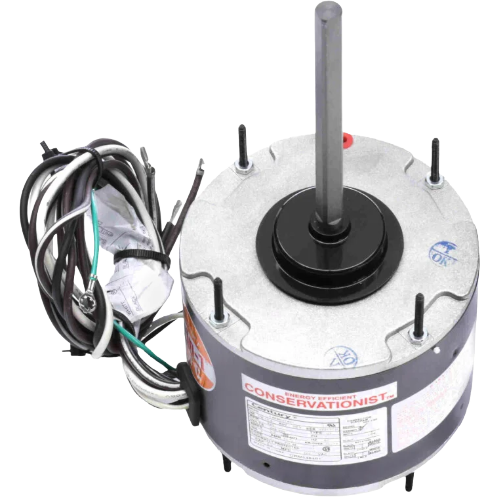

The Century ORM5484BF is a reliable, totally enclosed condenser fan motor engineered for demanding HVAC replacement and OEM applications. Rated at 1/8 to 1/15 HP and operating at 825 RPM on a single speed, this motor delivers consistent, efficient airflow performance in a wide range of air conditioning and refrigeration systems.
Electrical Specifications
- Voltage: 208–230V AC
- Amperage: 0.8 Amps
- Speed: 825 RPM, 1 Speed
- Horsepower: 1/8 HP – 1/15 HP
Mechanical Specifications
- Frame: 48Y
- Motor Diameter: 5 5/8″
- Bearings: Ball Bearings for long service life and reduced maintenance
- Enclosure: Totally Enclosed for protection against dust and moisture
- Mounting: All Angle Mounting for versatile installation flexibility
- Rotation: Reversible — adaptable to multiple system configurations
- Drain Plugs: Removable, allowing proper condensate drainage in any mounting position
Key Features & Benefits
- Totally enclosed construction protects internal components from environmental contaminants
- Ball bearing design ensures smooth, quiet operation and extended motor life
- All-angle mounting capability simplifies installation across a variety of equipment configurations
- Reversible rotation provides added flexibility for replacement applications
- Removable drain plugs accommodate any mounting orientation, preventing moisture buildup
- 48Y frame ensures broad OEM and aftermarket compatibility
- Compact 5 5/8″ diameter fits standard condenser fan housings
Typical Applications
- Residential and light commercial air conditioning condensing units
- Refrigeration equipment condenser fans
- OEM and aftermarket motor replacement
The Century ORM5484BF is built to Century’s exacting standards for quality and durability, making it a trusted choice for HVAC technicians and contractors who need a dependable drop-in replacement motor that performs season after season.
