Description

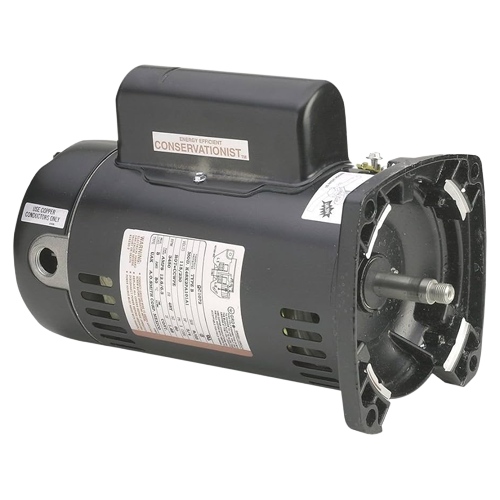

The Century SQ1202 is a heavy-duty 2 HP square flange pool and spa pump motor engineered for reliable, high-performance water circulation in demanding residential and commercial applications. Built on the industry-standard 48Y frame with a two-compartment square flange mount, this motor drops directly into most major pool pump housings for a straightforward replacement.
Electrical Specifications
- Voltage: 230V AC
- Full Load Amps: 11.2 A
- Horsepower: 2 HP
- Total Horsepower (THP): 2.6
- Service Factor: 1.3
- Speed: 3450 RPM, Single Speed
- Motor Type: Capacitor Start
Mechanical Specifications
- Frame: 48Y
- Mount: Two Compartment Square Flange
- Rotation: CCWPE (Counter-Clockwise, Pump End)
- Shaft Material: 303 Stainless Steel Threaded Shaft
- Bearings: Sealed Ball Bearings
- Enclosure: Open Dripproof (ODP)
- Thermal Protection: Auto Protector
Key Features & Benefits
- 303 stainless steel threaded shaft resists corrosion in wet, chemical-rich pool environments
- Sealed ball bearings provide long service life and reduce maintenance requirements
- Automatic thermal protector guards against overheating and motor burnout
- 1.3 service factor allows the motor to handle loads beyond its nameplate rating without damage
- Open dripproof enclosure allows ventilation while protecting against dripping liquids
- Standard 48Y two-compartment square flange mount ensures broad pump compatibility
- Single-speed capacitor-start design delivers strong starting torque for dependable pump engagement
Application
The SQ1202 is designed as a direct replacement motor for swimming pool, spa, and water feature pump systems. Its CCWPE rotation, stainless steel shaft, and square flange frame make it compatible with a wide range of popular pump brands and models. Whether you are servicing a residential pool or a commercial aquatic facility, the Century SQ1202 delivers the durability and performance needed for continuous-duty water circulation.
