Description

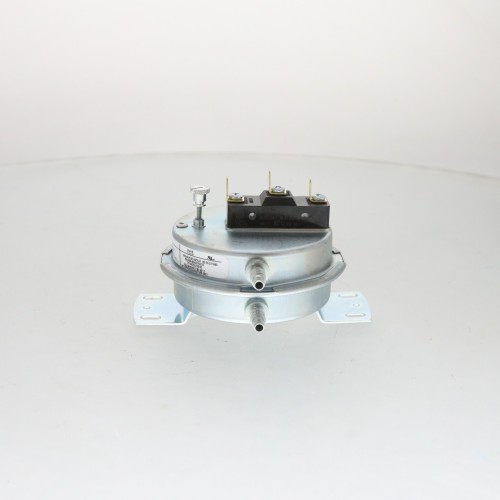

The Cleveland Controls RFS-4100-040 is a high-quality adjustable pressure switch engineered for precise airflow and pressure monitoring in HVAC and combustion air applications. Designed to change contacts on increasing pressure, this switch provides reliable switching action that can be field-set to meet a wide range of system requirements.
Key Features
- Adjustable setpoint range from 0.15″ w.c. (± 0.02″) to 5.0″ w.c.
- Contacts change state on increasing pressure for dependable system protection
- Maximum operating pressure of 1/2 PSI
- Wide adjustment range suits diverse HVAC, burner, and air-handling applications
- Compact, rugged construction for long-term reliability in demanding environments
- Field-adjustable setpoint eliminates the need for multiple fixed-setpoint switches
Application
The RFS-4100-040 is ideal for use in furnaces, boilers, air handlers, and commercial HVAC equipment where monitoring of positive air or gas pressure is required. Its broad adjustment range and contact-on-rise action make it suitable for proving combustion air, monitoring blower operation, and protecting equipment from unsafe pressure conditions.
Specifications
- Brand: Cleveland Controls
- SKU: RFS-4100-040
- Switch Type: Adjustable Pressure Switch
- Setpoint Range: 0.15″ w.c. (± 0.02″) to 5.0″ w.c.
- Contact Action: Change contacts on increasing pressure
- Maximum Pressure: 1/2 PSI
