Description

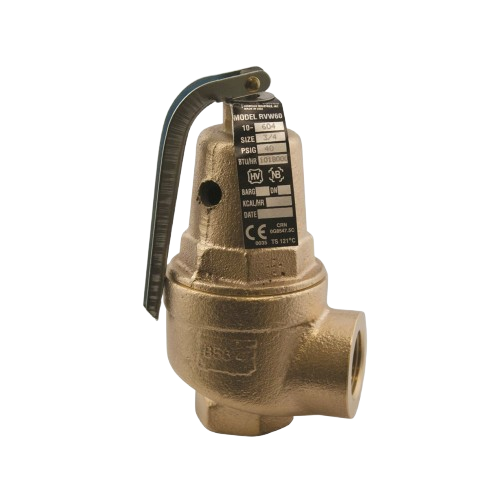

The Conbraco 10-614-15 is a premium ASME Section IV certified bronze safety relief valve, engineered to protect hot-water heating systems and boilers. Designed for reliability and longevity, this valve offers exceptional performance in demanding applications.
Key Features
- Pressure Range: Factory-set at 75 psi, with the ability to preset anywhere from 15 to 160 psig, giving flexibility for different system requirements.
- Connection Size: ¾″ FNPT inlet × 1″ FNPT outlet, making it compatible with standard plumbing setups.
- Temperature Rating: Rated for service up to 250 °F (121 °C), suitable for typical hot-water heating systems.
- High Capacity: Supports up to 1,977,000 BTU/hr, making it ideal for high-output boilers and large hydronic heating systems.
- Durable Construction: Built with an ASTM B584 bronze body that resists corrosion and ensures long service life.
- Sealing Mechanism: Uses a silicone seat for reliable sealing under pressure, preventing leaks while maintaining responsiveness.
- Diaphragm-Isolated Spring Chamber: This design protects the internal spring from water exposure, reducing corrosion and enhancing durability.
- Certification: Meets ASME Section IV capacity requirements for boiler safety relief.
- Made in the USA: Built to high manufacturing standards for reliability and regulatory compliance.
