Description

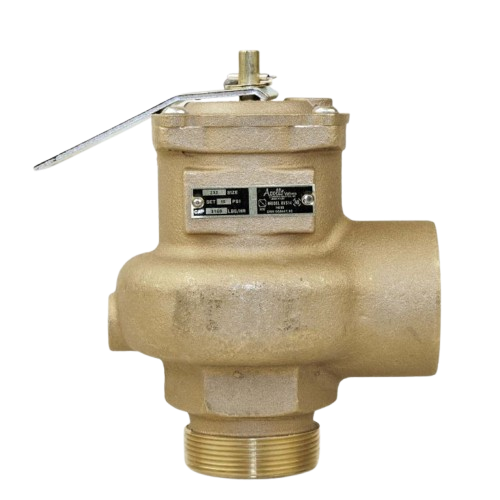

Protect your low-pressure steam boiler system with the Conbraco 14-206-08 — a high-capacity, bronze-bodied safety relief valve designed for demanding commercial and industrial steam applications.
Key Specifications
- Nominal size: 2½″ MNPT inlet × 2½″ FNPT outlet.
- Set pressure: 15 PSIG (designed for low-pressure steam service).
- Rated capacity: 4,676 lb/hr (PPH) at 15 PSIG.
- Construction: One-piece bronze body (ASTM B584), chrome-plated seat, PTFE-coated disc, rust-proof steel spring, PTFE-coated EPDM O-ring for tight seal.
- Maximum saturated steam temperature rating: ~250 °F.
- Certified and compliant: Meets American Society of Mechanical Engineers (ASME) Section IV standards and is “HV” National Board capacity certified at 15 PSIG.
