Conbraco Industries 10-322-P25 3/4″ NPT Steam Pressure Safety Relief Valve, 25 PSI

Description

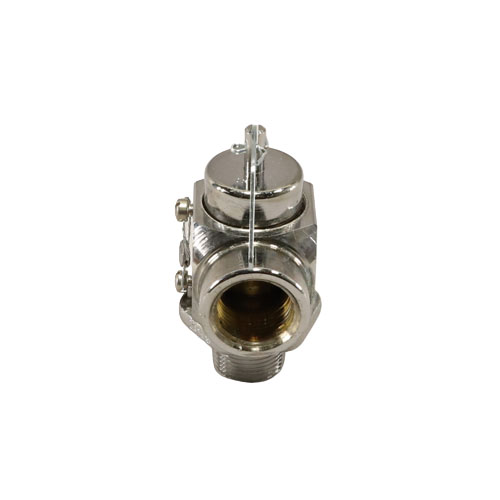

Conbraco Industries 10-322-P25 Steam Pressure Safety Relief Valve

The Conbraco Industries 10-322-P25 is a high-quality steam pressure safety relief valve engineered to protect boilers and steam systems from dangerous overpressure conditions. Factory-set at 25 PSI and finished in polished chrome, this valve delivers reliable, code-compliant performance in a wide range of commercial and residential steam heating applications.

Key Features

• 3/4″ Male NPT inlet connection for straightforward installation into standard steam system piping
• 3/4″ Female NPT outlet connection for easy discharge line attachment
• Factory set at 25 PSI — no field adjustment required
• 375 lb./hr. steam capacity to handle demanding system loads
• 312°F maximum temperature service rating for steam applications
• ASME Section VIII certified, ensuring compliance with pressure vessel safety codes
• Polished chrome finish provides corrosion resistance and a professional appearance

Specifications

• SKU: 10-322-P25
• Brand: Conbraco Industries
• Inlet Connection: 3/4″ Male NPT
• Outlet Connection: 3/4″ Female NPT
• Set Pressure: 25 PSI
• Capacity: 375 lb./hr.
• Maximum Temperature: 312°F
• Certification: ASME Section VIII
• Finish: Polished Chrome
• Media: Steam

Application

Designed for use on steam boilers, pressure vessels, and steam heating systems where overpressure protection is required. The ASME Section VIII certification makes this valve suitable for installations where code compliance is mandatory. The polished chrome finish is ideal for exposed piping in mechanical rooms or finished spaces.
