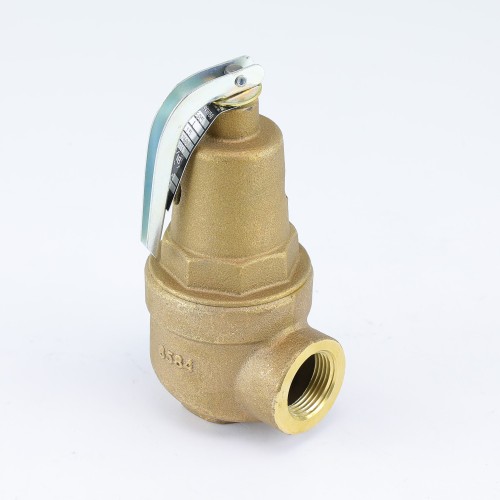

Conbraco Industries 10-605-01 1″ FPT x 1″ FPT 15 PSI 876,000 BTU Hot Water High Capacity Pressure Relief Valve

Description

Overview

The Conbraco Industries 10-605-01 is a high capacity hot water pressure relief valve engineered to protect hydronic heating systems from dangerous overpressure conditions. With a factory-set relief pressure of 15 PSI and an impressive 876,000 BTU capacity rating, this valve is built for demanding commercial and residential boiler applications where reliable pressure protection is non-negotiable.

Key Features

• High capacity pressure relief valve designed for hot water heating systems
• Factory set at 15 PSI for precise, consistent pressure relief
• 876,000 BTU capacity rating handles high-demand hydronic applications
• 1″ Female NPT inlet connection for easy in-line installation
• 1″ Female NPT outlet connection for straightforward discharge piping
• Robust construction engineered for long-term reliability in boiler and hydronic systems
• High capacity design minimizes pressure buildup risk in large heating systems

Specifications

• Brand: Conbraco Industries
• Model / SKU: 10-605-01
• Valve Type: Hot Water High Capacity Pressure Relief Valve
• Inlet Connection: 1″ Female NPT (FPT)
• Outlet Connection: 1″ Female NPT (FPT)
• Set Pressure: 15 PSI
• BTU Capacity: 876,000 BTU
• Application: Hot Water Hydronic Heating Systems

Application

Ideal for use on hot water boilers, hydronic heating systems, and other pressurized water heating equipment where a reliable, high-capacity pressure relief device is required. The 1″ NPT connections allow for straightforward integration into existing piping, and the 15 PSI set point ensures the system is protected against overpressure before damage can occur.
