Description

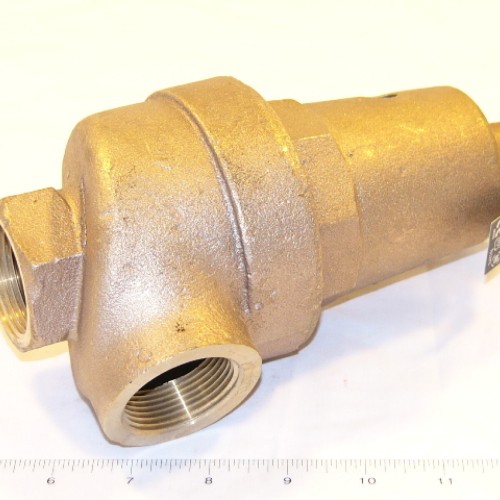

The Conbraco Industries 10-606-10 is a high-capacity hot water pressure relief valve engineered for demanding hydronic heating and hot water system applications. Designed to protect boilers, water heaters, and hydronic systems from dangerous overpressure conditions, this valve delivers reliable, code-compliant safety performance in a robust, high-flow configuration.
Product Overview
This pressure relief valve features female NPT connections on both the inlet and outlet, making it straightforward to integrate into existing piping systems. Factory-set at 50 PSI, it automatically opens to discharge excess pressure before system components are exposed to potentially damaging or hazardous conditions. With a rated BTU capacity of 3,384,000 BTU/hr, it is well-suited for large commercial and high-output residential boiler and hot water heating systems.
Key Features
- 1-1/4″ Female NPT inlet connection
- 1-1/4″ Female NPT outlet connection
- Factory set at 50 PSI relief pressure
- High capacity rating of 3,384,000 BTU/hr
- Designed for hot water heating and hydronic system applications
- High-capacity construction for large boiler and water heater installations
- Provides automatic overpressure protection to safeguard system components
Specifications
- Brand: Conbraco Industries
- Model / SKU: 10-606-10
- Inlet Connection: 1-1/4″ Female NPT
- Outlet Connection: 1-1/4″ Female NPT
- Set Pressure: 50 PSI
- BTU Capacity: 3,384,000 BTU/hr
- Application: Hot water / hydronic heating systems
Applications
The Conbraco 10-606-10 is ideal for use on commercial and high-output residential boilers, large hot water heating systems, and hydronic heating installations where a high-capacity, reliable pressure relief valve is required to meet safety codes and protect system integrity.
