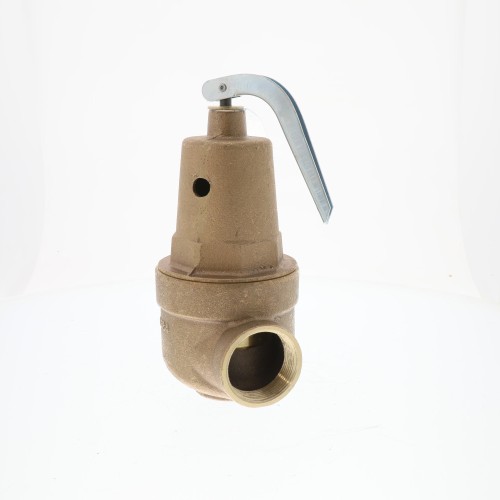

Conbraco Industries 10-616-11 Hot Water High Capacity Pressure Relief Valve 55 PSI

Description

Product Overview

The Conbraco Industries 10-616-11 is a high capacity pressure relief valve engineered for hot water heating systems demanding robust overpressure protection. With a factory-set relief pressure of 55 PSI and an impressive capacity rating of 4,283,000 BTU, this valve is built to safeguard large-scale hydronic and boiler installations where standard-capacity valves fall short.

Key Features

• High capacity design rated at 4,283,000 BTU for demanding hot water heating applications
• Factory-set at 55 PSI for consistent, reliable pressure relief
• 1-1/4″ Female NPT inlet connection for straightforward system integration
• 1-1/2″ Female NPT outlet connection to accommodate high-flow discharge
• Engineered for hot water service in hydronic heating and boiler systems
• Conbraco Industries quality construction for long service life and dependable performance

Specifications

• SKU: 10-616-11
• Brand: Conbraco Industries
• Valve Type: Hot Water High Capacity Pressure Relief Valve
• Set Pressure: 55 PSI
• BTU Capacity: 4,283,000 BTU
• Inlet Connection: 1-1/4″ Female NPT
• Outlet Connection: 1-1/2″ Female NPT
• Service: Hot Water

Application

The Conbraco 10-616-11 is ideal for commercial and industrial hot water boiler systems, hydronic heating loops, and other pressurized water heating applications where high BTU throughput requires a larger-capacity relief valve. The oversized outlet ensures rapid, unrestricted discharge during a relief event, helping to protect system components and maintain safe operating conditions.
