Description

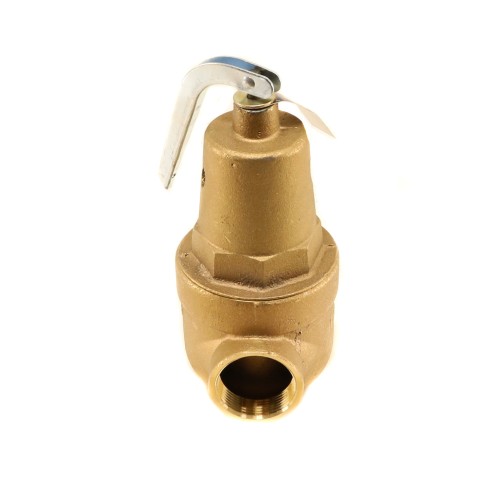

The Conbraco Industries 10-616-36 is a high-capacity hot water pressure relief valve engineered for demanding hydronic and hot water heating applications. Factory-set at 160 PSI, this valve provides reliable overpressure protection and is designed to handle the high BTU loads found in commercial and industrial boiler and hot water systems.
Key Features
- High-capacity hot water pressure relief valve designed for commercial and industrial use
- Factory pre-set at 160 PSI for consistent, dependable overpressure protection
- Massive 10,860,000 BTU rated capacity to handle high-demand heating systems
- 1-1/4″ Female NPT (FNPT) inlet connection for easy installation into existing piping
- 1-1/2″ Female NPT (FNPT) outlet connection for efficient discharge flow
- Robust construction built to withstand the rigors of high-pressure hot water service
Specifications
- SKU: 10-616-36
- Brand: Conbraco Industries
- Valve Type: Hot Water High Capacity Pressure Relief Valve
- Inlet Connection: 1-1/4″ Female NPT (FNPT)
- Outlet Connection: 1-1/2″ Female NPT (FNPT)
- Set Pressure: 160 PSI
- BTU Capacity: 10,860,000 BTU/hr
- Application: Hot Water Heating Systems
Application
The Conbraco 10-616-36 is ideal for protecting boilers, water heaters, and hydronic heating systems from dangerous overpressure conditions. Its high BTU capacity rating makes it well-suited for large commercial and industrial installations where standard residential relief valves would be undersized. The female NPT connections on both inlet and outlet simplify integration into existing pipework, reducing installation time and labor costs.
