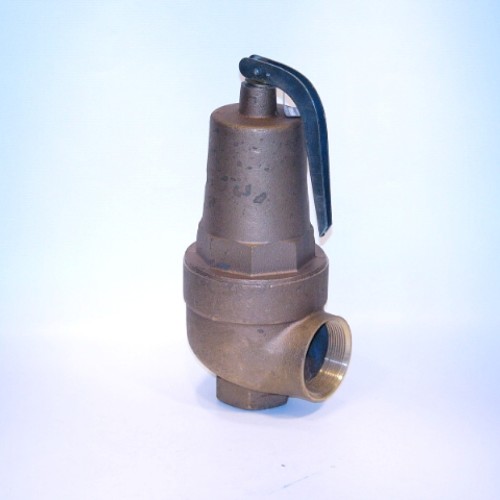

Conbraco Industries 10-617-20 Hot Water High Capacity Pressure Relief Valve

Description

Product Overview

The Conbraco Industries 10-617-20 is a high-capacity hot water pressure relief valve engineered to provide dependable overpressure protection in demanding hydronic and hot water heating systems. With a factory-set relief pressure of 100 PSI and an impressive 9,661,000 BTU capacity, this valve is built to handle the rigorous demands of commercial and industrial heating applications.

Key Features

• High-capacity design rated at 9,661,000 BTU for heavy-duty hot water systems
• Factory set at 100 PSI for consistent, reliable pressure relief
• 1-1/2″ Female NPT inlet connection for straightforward installation
• 2″ Female NPT outlet connection for efficient discharge flow
• Robust construction designed to meet the demands of commercial and industrial hydronic systems
• Provides critical overpressure protection to safeguard boilers, water heaters, and associated piping

Specifications

• SKU: 10-617-20
• Brand: Conbraco Industries
• Valve Type: Hot Water High Capacity Pressure Relief Valve
• Inlet Connection: 1-1/2″ Female NPT
• Outlet Connection: 2″ Female NPT
• Set Pressure: 100 PSI
• BTU Capacity: 9,661,000 BTU

Application

Designed for use in commercial and industrial hot water heating systems, the Conbraco 10-617-20 pressure relief valve automatically opens to discharge excess pressure when system pressure exceeds the 100 PSI set point. This protects boilers, water heaters, and associated equipment from potentially dangerous overpressure conditions. The large 2″ female NPT outlet ensures rapid, unrestricted discharge, making it ideal for high-output systems where fast pressure relief is critical.
