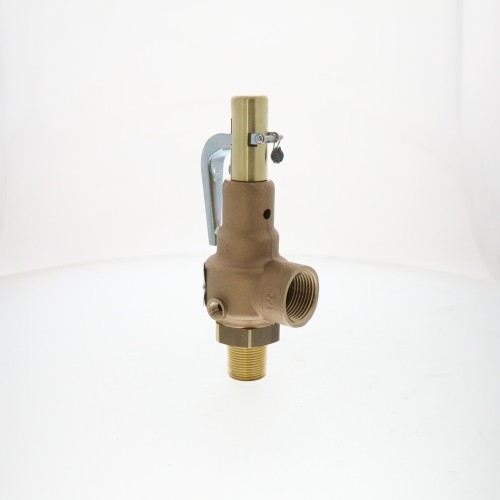

Conbraco Industries 19-KEDA-150 3/4″ Male NPT x 1″ Female NPT 150 PSI Section I Steam Pressure Relief Valve

Description

Overview

The Conbraco Industries 19-KEDA-150 is a Section I-rated steam pressure relief valve engineered for dependable overpressure protection in commercial and industrial boiler systems. With a 3/4″ Male NPT inlet and a 1″ Female NPT outlet, this valve delivers a factory-set relief pressure of 150 PSI and a robust capacity of 1,656 pounds per hour — making it a trusted choice for high-demand steam applications.

Key Features

• Factory set at 150 PSI for consistent, reliable overpressure protection
• High-capacity relief rated at 1,656 pounds per hour (lbs/hr)
• 3/4″ Male NPT inlet connection for straightforward installation
• 1″ Female NPT outlet connection for proper discharge piping
• Brass trim construction for corrosion resistance and long service life
• Teflon seat provides a tight, leak-free seal and extended durability
• ASME Section I certified for steam boiler pressure relief applications

Specifications

• SKU: 19-KEDA-150
• Brand: Conbraco Industries
• Inlet Connection: 3/4″ Male NPT
• Outlet Connection: 1″ Female NPT
• Set Pressure: 150 PSI
• Capacity: 1,656 lbs/hr
• Trim Material: Brass
• Seat Material: Teflon
• Code Compliance: ASME Section I (Steam)

Application

Designed for use on steam boilers where ASME Section I compliance is required, the 19-KEDA-150 is ideal for commercial heating plants, industrial process steam systems, and any application demanding a certified, high-capacity pressure relief solution. The Teflon seat ensures a positive shutoff after each actuation, minimizing maintenance and downtime.
