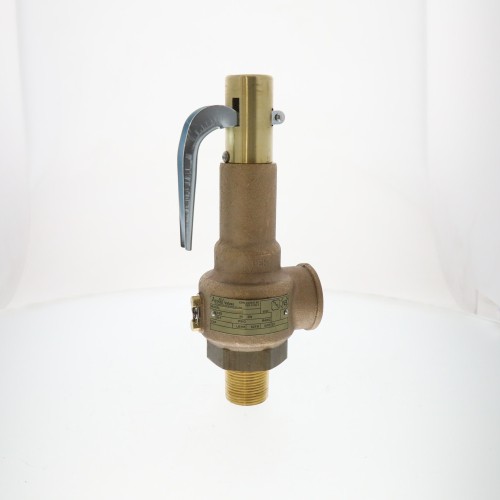

Conbraco Industries 19-KFEA-100 1″ Male NPT x 1-1/4″ Female NPT 100 PSI Steam PRV

Description

The Conbraco Industries 19-KFEA-100 is a Section I rated steam pressure relief valve engineered for reliable overpressure protection in commercial and industrial boiler applications. Built to ASME Section I standards, this valve provides dependable safety performance where it matters most.

Key Specifications

• Inlet Connection: 1″ Male NPT
• Outlet Connection: 1-1/4″ Female NPT
• Set Pressure: 100 PSI
• Capacity: 1,798 Pounds Per Hour (PPH)
• Trim Material: Brass
• Seat Material: Teflon
• Code Compliance: ASME Section I (Steam Boilers)

Product Highlights

• ASME Section I certified for steam boiler overpressure protection
• Brass trim construction delivers long-lasting corrosion resistance
• Teflon seat ensures a positive, leak-free seal under demanding steam conditions
• 1,798 PPH rated capacity handles high-demand steam system loads
• Reducing inlet-to-outlet connection (1″ MNPT x 1-1/4″ FNPT) accommodates standard boiler piping configurations
• 100 PSI factory-set pressure provides precise, consistent relief activation

Application

The Conbraco 19-KFEA-100 is designed for use on steam boilers requiring ASME Section I code compliance. Its brass trim and Teflon seat combination is ideal for steam service, providing reliable seating and reseating performance cycle after cycle. The valve’s generous 1,798 PPH capacity makes it suitable for medium to large commercial boiler installations where dependable pressure relief is critical to system safety.
