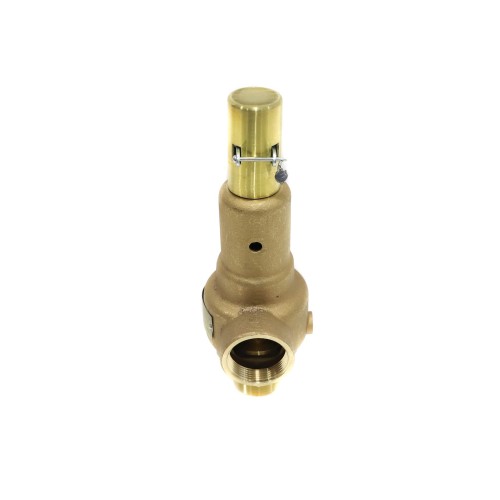

Conbraco Industries 19-KGFA-125 Section I Steam Pressure Relief Valve
The Conbraco Industries 19-KGFA-125 is a high-performance Section I steam pressure relief valve engineered for reliable overpressure protection in commercial and industrial boiler applications. With a 1-1/4″ Male NPT inlet and a 1-1/2″ Female NPT outlet, this valve delivers a factory-set relief pressure of 125 PSI and a rated capacity of 3,595 pounds per hour — making it well-suited for demanding steam system environments where dependable safety performance is non-negotiable.
Constructed with brass trim and a Teflon seat, the 19-KGFA-125 offers excellent corrosion resistance and long-term sealing integrity under high-temperature steam conditions. The Teflon seat ensures a tight, leak-free closure between actuations, reducing maintenance intervals and extending service life.
Key Features
- Set Pressure: 125 PSI
- Rated Capacity: 3,595 Pounds Per Hour (PPH)
- Inlet Connection: 1-1/4″ Male NPT
- Outlet Connection: 1-1/2″ Female NPT
- Trim Material: Brass
- Seat Material: Teflon — provides tight shutoff and corrosion resistance
- Code Compliance: ASME Section I — rated for steam boiler applications
Application
- Commercial and industrial steam boiler systems
- High-pressure steam distribution and process piping
- Overpressure protection per ASME Section I requirements
- Replacement or new-installation steam safety relief valves
Why Choose the Conbraco 19-KGFA-125
Conbraco Industries has a long-standing reputation for manufacturing precision-engineered valves built to meet the rigorous demands of HVAC, plumbing, and industrial applications. The 19-KGFA-125 is no exception — combining ASME Section I certification, a robust brass-trimmed body, and a reliable Teflon seat to deliver consistent, code-compliant overpressure protection in steam boiler systems. Whether you’re replacing an aging safety valve or specifying components for a new installation, the Conbraco 19-KGFA-125 provides the performance and peace of mind your system demands.
