Description

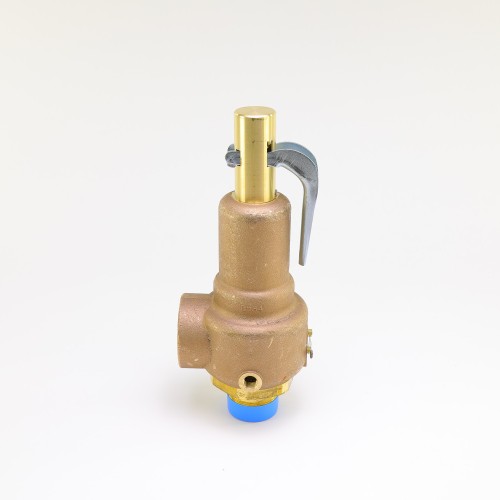

The Conbraco Industries 19-KJHA-50 is a heavy-duty Section I Steam Pressure Relief Valve engineered for high-capacity steam boiler protection. With a 2″ Male NPT inlet and a 2-1/2″ Female NPT outlet, this valve delivers reliable overpressure relief in demanding commercial and industrial steam systems. Set at 50 PSI, it provides consistent, repeatable performance to safeguard boiler integrity and maintain system safety.
Constructed with brass trim and a Teflon seat, the 19-KJHA-50 offers excellent corrosion resistance and long service life in steam environments. The Teflon seat ensures a tight, leak-free seal under normal operating conditions while allowing precise, responsive actuation when system pressure reaches the set point.
Key Features
- Set Pressure: 50 PSI
- Capacity: 4,283 Pounds Per Hour (lbs/hr)
- Inlet Connection: 2″ Male NPT
- Outlet Connection: 2-1/2″ Female NPT
- Trim Material: Brass
- Seat Material: Teflon
- Code Compliance: ASME Section I (Steam Boilers)
Applications
- Commercial and industrial steam boiler systems
- High-capacity steam pressure relief and overpressure protection
- Systems requiring ASME Section I certified relief valves
Why Choose the Conbraco 19-KJHA-50?
Conbraco Industries is a trusted name in pressure relief and flow control valves. The 19-KJHA-50 is built to ASME Section I standards, making it a code-compliant choice for steam boiler installations. Its robust brass trim and Teflon seat construction ensure durability and dependable sealing performance across the valve’s service life. The generous 4,283 lbs/hr steam capacity makes this valve well-suited for larger commercial and light industrial boiler applications where reliable overpressure protection is critical.
