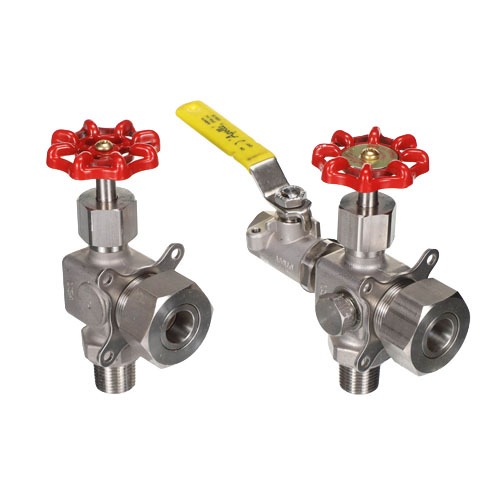

Conbraco Industries 23-450-03 Stainless Steel Liquid Level Gauge Valve
The Conbraco Industries 23-450-03 is a heavy-duty stainless steel liquid level gauge valve engineered for demanding hydronic, steam, and industrial process applications. Featuring 1/2″ NPT male connections, this valve delivers reliable visual level indication combined with the safety of integrated automatic ball checks — protecting personnel and equipment in the event of glass failure.
Key Features
- 1/2″ NPT male connections for straightforward installation into standard pipe systems
- Stainless steel body construction for superior corrosion resistance and long service life
- Automatic ball checks provide instant shutoff if the sight glass is damaged or broken
- PTFE seat with Hypalon glass seal ensures a leak-tight, chemically resistant seal at the glass interface
- Braided Teflon with Aramid fiber stem packing delivers exceptional sealing performance under high-pressure and high-temperature conditions
- Aluminum type wheel handle for easy manual operation
- Rated at 500 PSI at 450°F for high-pressure, high-temperature service
Construction & Materials
- Body: Stainless steel
- Connections: 1/2″ NPT male
- Seat/Glass Seal: PTFE with Hypalon
- Stem Packing: Braided Teflon with Aramid fiber
- Handle: Aluminum type wheel
- Safety Feature: Automatic ball checks
Ratings & Specifications
- Pressure Rating: 500 PSI
- Temperature Rating: 450°F
- Connection Type: 1/2″ NPT Male
Applications
- Boiler liquid level monitoring
- Steam system sight glass installations
- High-pressure hydronic systems
- Industrial process fluid level gauging
- Hot water storage tanks and pressure vessels
The Conbraco 23-450-03 is built to meet the rigorous demands of commercial and industrial HVAC and process environments where accurate level indication, safety, and durability are non-negotiable.
