Description

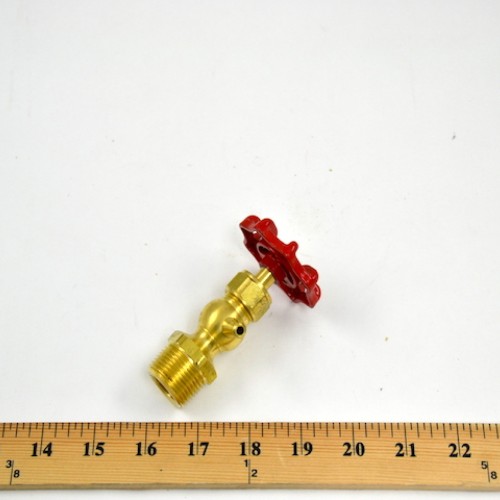

Conbraco Industries 26-307-01 Compression Gauge Cock Overview
The Conbraco Industries 26-307-01 is a heavy-duty compression gauge cock engineered for reliable isolation and service of pressure gauges in demanding HVAC, hydronic, and steam system applications. Built with a satin brass body and featuring a soft metal seat with stuffing box design, this gauge cock delivers a dependable, leak-resistant seal under high-temperature and high-pressure operating conditions.
Key Features
- 3/4″ Male NPT connection for easy installation into standard threaded gauge ports
- Satin brass body construction for corrosion resistance and long service life
- Soft metal seat and stuffing box design ensures a positive, leak-tight shutoff
- Aluminum handwheel provides comfortable, tool-free operation
- Compression-style valve mechanism for smooth, controlled flow isolation
- Rated up to 250 PSI at 400°F — suitable for steam, hot water, and high-pressure applications
Specifications
- SKU: 26-307-01
- Brand: Conbraco Industries
- Connection Type: 3/4″ Male NPT
- Body Material: Satin Brass
- Seat Type: Soft Metal Seat with Stuffing Box
- Operator: Aluminum Wheel
- Maximum Pressure Rating: 250 PSI
- Maximum Temperature Rating: 400°F
Applications
The 26-307-01 gauge cock is ideal for use in boiler rooms, hydronic heating systems, steam distribution systems, and commercial HVAC installations where pressure gauge isolation is required. Its robust brass construction and high-temperature/pressure rating make it a trusted choice for professional HVAC and plumbing contractors.
