Description

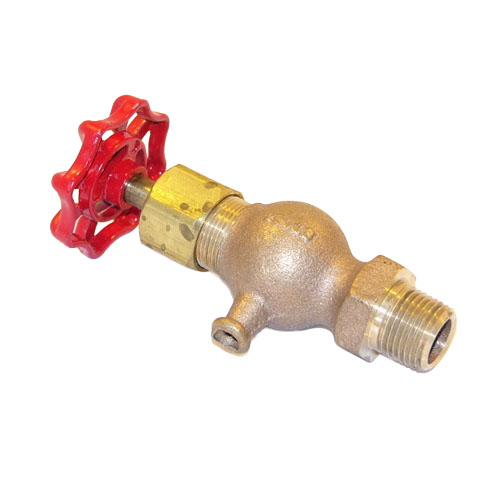

Conbraco Industries 26-704-01 Compression Gauge Cock Overview
The Conbraco Industries 26-704-01 is a heavy-duty compression gauge cock engineered for reliable isolation and pressure gauge service in demanding HVAC, hydronic, and steam system applications. Constructed with a satin brass body, this gauge cock delivers excellent corrosion resistance and long service life. The TFE (polytetrafluoroethylene) seat provides a leak-tight, low-friction seal, while the aluminum handwheel allows for smooth, easy operation — even in tight mechanical spaces.
Key Features
- 1/2″ Male NPT connection for straightforward installation into standard piping systems
- Satin brass body construction for superior corrosion resistance and durability
- TFE (PTFE) seat ensures a reliable, leak-free seal and extended service life
- Aluminum handwheel for comfortable, tool-free operation
- Compression-style gauge cock design for positive shutoff at gauge connections
Ratings & Specifications
- Maximum Pressure: 250 PSI
- Maximum Temperature: 400°F
- Connection Type: 1/2″ Male NPT
- Body Material: Satin Brass
- Seat Material: TFE (PTFE)
- Operator: Aluminum Wheel
Typical Applications
- Pressure gauge isolation on boilers, steam, and hydronic heating systems
- Commercial and industrial HVAC piping systems
- Steam and hot water distribution lines
- Anywhere a reliable, high-temperature gauge shutoff valve is required
