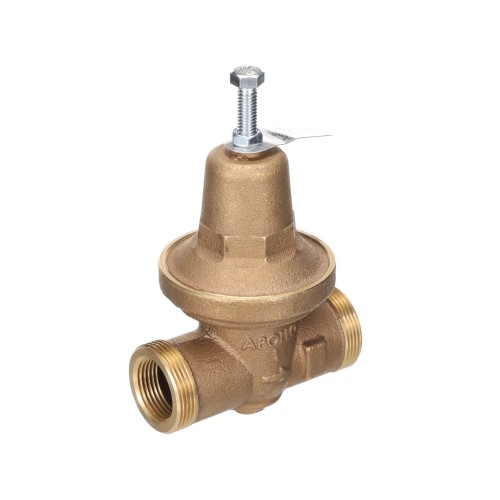

Conbraco Industries 36-205-02 Water Pressure Reducing Valve
The Conbraco Industries 36-205-02 is a robust, direct-acting water pressure reducing valve engineered to protect downstream plumbing and hydronic systems from excessive line pressure. With a 1″ Female NPT inlet and 1″ Female NPT outlet, this valve installs easily into standard piping systems and delivers precise, adjustable pressure regulation for residential and light commercial applications.
Key Specifications
- Connection Type: 1″ Female NPT (inlet) x 1″ Female NPT (outlet)
- Outlet Pressure Adjustment Range: 10–35 PSI
- Maximum Inlet Pressure: 300 PSI
- Maximum Operating Temperature: 180°F
- Valve Type: Water Pressure Reducing Valve (PRV)
- SKU / Part Number: 36-205-02
Features & Benefits
- Wide adjustment range (10–35 PSI) allows precise downstream pressure setting to match system requirements
- Handles inlet pressures up to 300 PSI, making it suitable for high-pressure municipal supply lines
- Rated for water temperatures up to 180°F, compatible with both cold and hot water service
- 1″ FNPT connections on both ends for straightforward in-line installation with standard pipe fittings
- Durable construction from Conbraco Industries — a trusted name in flow control and valve technology
- Helps extend the service life of downstream fixtures, appliances, and piping by maintaining safe operating pressures
Typical Applications
- Residential and light commercial potable water systems
- Hydronic heating systems requiring controlled supply pressure
- Protection of water heaters, boilers, and plumbing fixtures from high inlet pressure
- Any application requiring reliable pressure reduction from high municipal or well supply lines
