Description

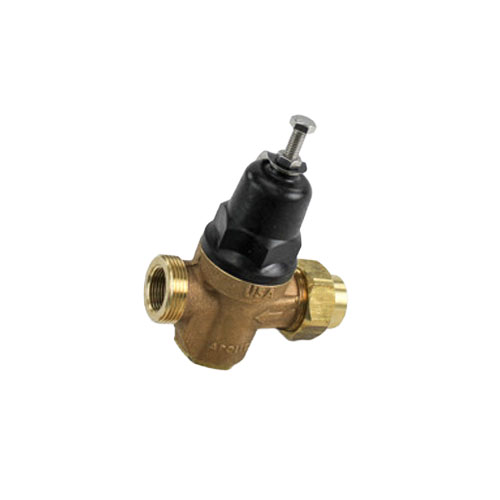

The Conbraco Industries 36C-104-02 is a 3/4″ water pressure reducing valve (PRV) engineered for reliable pressure management in residential and light commercial plumbing and hydronic systems. With a 10–35 PSI outlet adjustment range and a 400 PSI maximum inlet pressure rating, this valve handles a wide spectrum of supply pressures and delivers consistent, adjustable downstream pressure to protect fixtures, appliances, and piping from damaging overpressure conditions.
The union NPT inlet connection simplifies installation and future serviceability — the union design allows the valve to be removed from the line without disturbing adjacent piping. The 3/4″ female NPT outlet provides straightforward integration into standard threaded piping systems.
A built-in integral stainless steel strainer protects the valve’s internal components from particulate contamination, extending service life and reducing maintenance requirements.
Key Features
- 3/4″ Union NPT inlet x 3/4″ Female NPT outlet connections
- 10–35 PSI outlet pressure adjustment range
- 400 PSI maximum inlet pressure rating
- Integral stainless steel strainer for debris protection
- Union inlet design for easy in-line removal and servicing
- Suitable for residential and light commercial water systems
Specifications
- Brand: Conbraco Industries
- SKU / Model: 36C-104-02
- Inlet Connection: 3/4″ Union NPT
- Outlet Connection: 3/4″ Female NPT
- Outlet Pressure Adjustment Range: 10–35 PSI
- Maximum Inlet Pressure: 400 PSI
- Strainer Material: Stainless Steel (Integral)
Applications
- Residential and commercial potable water supply systems
- Hydronic heating and cooling systems
- Protection of fixtures, appliances, and equipment from high inlet pressures
- Replacement or upgrade of existing 3/4″ pressure reducing valves
