Description

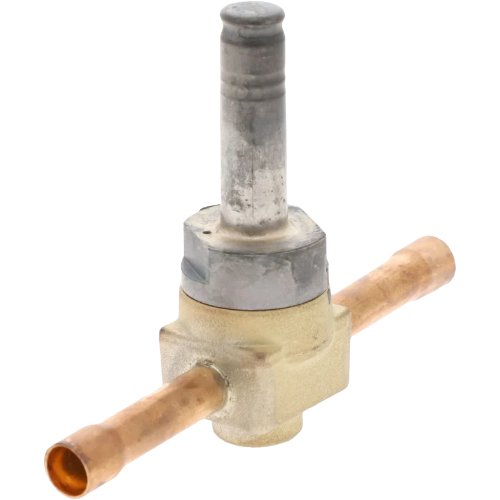

The Copeland 009689 is a pilot-operated, bi-flow refrigeration solenoid valve body engineered for reliable flow control in commercial and industrial refrigeration systems. Its normally closed, 2-way design ensures the valve remains shut when de-energized, providing a safe default state that protects system integrity during power interruptions.
Key Features
- 2-Way, Normally Closed (NC) configuration for fail-safe operation
- 3/8″ sweat (solder) connections for secure, leak-free installation
- Pilot-operated design for efficient, low-power actuation
- Bi-flow capability allows refrigerant flow in either direction — ideal for heat pump and reversible refrigeration circuits
- Compatible with R22 refrigerant at up to 4.8 tons capacity
- Compatible with R134a refrigerant at up to 4.4 tons capacity
- Part of the 200RB series (model GS-1925 3T3)
Specifications
- SKU: 009689
- Valve Type: Solenoid Valve Body
- Configuration: 2-Way, Normally Closed
- Operation: Pilot Operated
- Flow Direction: Bi-Flow
- Connection Size: 3/8″
- Connection Type: Sweat (Solder)
- R22 Capacity: 4.8 Ton
- R134a Capacity: 4.4 Ton
- Series: 200RB
- Model Reference: GS-1925 3T3
Applications
- Commercial refrigeration systems
- Heat pump circuits requiring bi-directional flow
- Liquid line solenoid valve service and replacement
- Refrigeration systems using R22 or R134a refrigerants
The bi-flow design makes this valve body especially versatile for heat pump and reversible-cycle applications where refrigerant must flow in both directions depending on operating mode. The pilot-operated mechanism delivers dependable actuation while minimizing electrical draw, making it a practical choice for demanding refrigeration environments.
