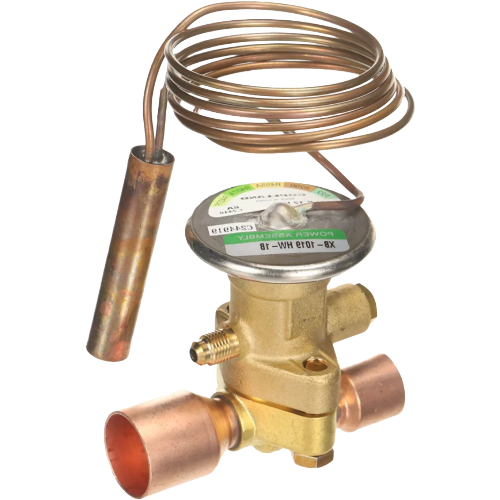

Copeland 027973 12-Ton TXV, R22/R407C, 7/8″ x 1-1/8″ ODF, 5′ Cap Tube

Description

The Copeland 027973 (TCLE 12 HW 5FT 7/8X1 1/8 ODF S/T) is a heavy-duty Thermal Expansion Valve (TXV) engineered for reliable refrigerant metering in large commercial HVAC and refrigeration systems. Designed for use with R22 and R407C refrigerants, this valve delivers precise superheat control at a 12-ton capacity rating, making it well-suited for demanding commercial cooling applications.

Built with a straight body configuration and ODF (Outside Diameter Fit) sweat connections, installation integrates cleanly into copper refrigerant piping. The externally equalized design ensures accurate pressure sensing at the evaporator outlet, compensating for pressure drop across the coil and maintaining stable superheat control even in longer or multi-circuit evaporators. A MOP (Maximum Operating Pressure) charge limits evaporator pressure during pull-down conditions, protecting the compressor from overload.

Key Features

• Refrigerant compatibility: R22 / R407C
• Capacity: 12 Ton
• Body style: Straight body
• Inlet connection: 7/8″ ODF (Sweat)
• Outlet connection: 1-1/8″ ODF (Sweat)
• Equalizer type: Externally equalized
• Equalizer connection: 1/4″ SAE (Flare)
• Capillary tube length: 5 feet
• Charge type: MOP (Maximum Operating Pressure)
• Part number: TCLE 12 HW 5FT 7/8X1 1/8 ODF S/T
• SKU: 027973

Application Highlights

• Ideal for commercial air conditioning and refrigeration systems using R22 or R407C
• External equalizer port compensates for evaporator pressure drop, ensuring accurate superheat control across multi-circuit coils
• MOP charge protects compressor during high-load pull-down conditions
• Sweat (ODF) connections provide secure, leak-resistant joints in copper piping systems
• 5-foot capillary tube allows flexible bulb placement on the suction line

The Copeland 027973 TXV is a dependable choice for HVAC technicians and contractors seeking precision refrigerant flow control in 12-ton commercial systems. Order today from Jackson Systems for expert support and fast fulfillment.
