Description

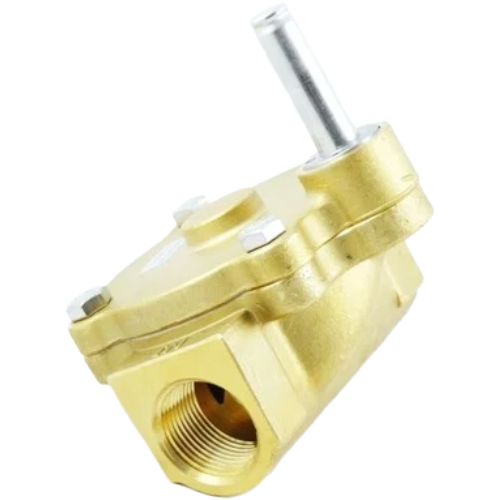

The Copeland 038629 is a heavy-duty, 2-way normally closed pilot operated industrial solenoid valve body engineered for reliable on/off flow control in commercial and industrial HVAC and fluid handling applications. Carrying the model designation 210CA1B1B, this valve body is designed to handle both air and water service across a broad pressure range, making it a versatile solution for demanding system environments.
Key Features
- 2-way, normally closed (NC) configuration — valve remains closed when de-energized for fail-safe operation
- Pilot operated design for efficient actuation across the rated pressure range
- 1″ NPT port connections for straightforward installation into standard piping systems
- 13 Cv flow coefficient for high-capacity flow performance
- Rated for 0–125 PSI operating pressure range
- Compatible with air and water media
- Industrial solenoid valve body construction for long service life in demanding environments
Specifications
- SKU: 038629
- Model: 210CA1B1B
- Valve Type: 2-Way Normally Closed (NC)
- Operation: Pilot Operated
- Port Size: 1″ NPT
- Flow Coefficient (Cv): 13
- Pressure Range: 0–125 PSI
- Media: Air and Water
Applications
- Commercial and industrial HVAC systems
- Air and water flow control in process piping
- Automated shut-off and on/off control systems
- Industrial fluid handling and distribution systems
