Description

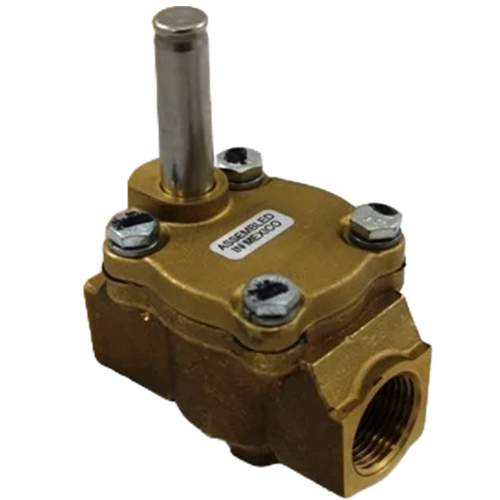

The Copeland 039930 is a heavy-duty, 2-way normally closed industrial solenoid valve engineered for reliable performance in demanding steam and fluid control applications. With a robust brass valve body and a 3/4″ NPT connection, this valve is built to handle the rigors of commercial and industrial HVAC systems. Its 7.0 Cv flow coefficient ensures efficient media flow, while the 0–150 PSI steam pressure rating makes it well suited for steam system control, process heating, and related hydronic applications.
Designed as a normally closed (NC) valve, it defaults to the closed position when de-energized, providing a safe fail-state for critical system control. The industrial-grade brass body offers excellent corrosion resistance and long service life, even in harsh operating environments.
Key Features
- 2-way, normally closed (NC) solenoid valve design
- 3/4″ NPT pipe connection for easy installation
- 7.0 Cv flow coefficient for efficient flow control
- 0–150 PSI steam pressure rating
- Industrial-grade brass valve body for durability and corrosion resistance
- Fail-safe normally closed operation — closes automatically when de-energized
- Suitable for steam, water, and compatible fluid media
Specifications
- SKU: 039930
- Model: 222CB3/4B3/4T
- Brand: Copeland
- Valve Type: 2-Way Normally Closed Solenoid Valve
- Connection Size: 3/4″ NPT
- Flow Coefficient (Cv): 7.0
- Pressure Rating: 0–150 PSI (Steam)
- Body Material: Brass
- Application: Industrial / HVAC Steam Systems
Applications
- Commercial and industrial steam system control
- Process heating and cooling systems
- Hydronic and boiler system fluid control
- HVAC equipment and building automation systems
