Description

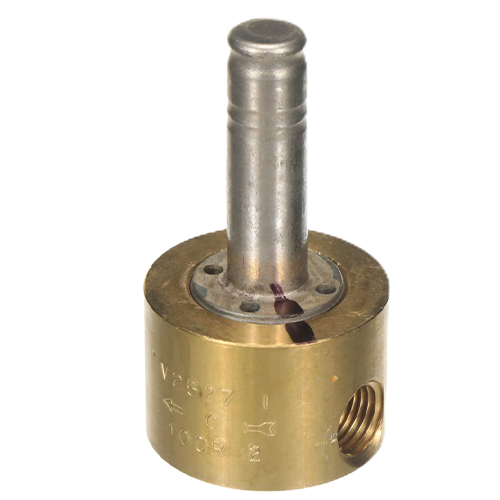

The Copeland 047502 (100RB2P2) is a direct acting, 2-way normally closed refrigeration solenoid valve body engineered for precise flow control in commercial and light commercial refrigeration systems. Designed to open when energized and close automatically upon de-energization, this normally closed configuration ensures fail-safe operation — a critical requirement in refrigerant circuit management.
Key Features
- 2-way, normally closed (NC) direct acting solenoid valve body
- 1/4″ NPT connection for straightforward installation into existing refrigerant piping
- Direct acting design — operates without minimum pressure differential, ensuring reliable performance across varying system conditions
- Compatible with R22 refrigerant at a rated capacity of 1.27 tons
- Compatible with R134a refrigerant at a rated capacity of 1.20 tons
- Valve body design allows for coil interchangeability and easy field servicing
- Compact form factor suited for tight equipment installations
Applications
- Refrigeration liquid line solenoid control
- Pump-down cycle control in refrigeration systems
- Commercial refrigeration cases and walk-in coolers
- Light commercial air conditioning systems using R22 or R134a refrigerants
Specifications
- SKU / Part Number: 047502
- Manufacturer Part Number: 100RB2P2
- Valve Type: 2-Way, Normally Closed (NC)
- Operation: Direct Acting
- Connection Size: 1/4″ NPT
- R22 Refrigerant Capacity: 1.27 Ton
- R134a Refrigerant Capacity: 1.20 Ton
- Brand: Copeland
Order the Copeland 047502 refrigeration solenoid valve body from Jackson Systems today for reliable, professional-grade refrigerant flow control.
